Lab Lithium Battery Slurry Coater Vacuum Electrode Film Coating Machine
The vacuum electrode film coating machine is equipped with a precise adjustable film device, and the moving push rod pushes it to move at a constant speed to achieve the uniformity of the slurry coating on the substrate. This equipment is particularly suitable for making battery substrates, which can ensure the substrate density of the positive/negative electrode material in each part of the sheet is uniform.
This compact tape casting coater with a heating cover is designed to produce films with consistent thickness. It has a unique driving system to produce a smooth coating on all types of materials. The flat vacuum chuck is built in to hold the substrate sheet in place, which is particularly useful when making thin coatings. There is a 100 mm width adjustable micrometer applicator (doctor-blade).
This film coating machine is mainly used for raw material of lithium battery electrode coating, the coating width can be adjusted and built-in vacuum pump. Heating cover with a digital temperature controller can dry films after coating up to 100°C with a temperature accuracy of +/-1°C.
Specification
| Film coating speed | 0～100mm/sec | ||||||
| Coating width | 0～150mm (customizable) | ||||||
| Travel | 300mm | ||||||
| Coating thickness accuracy | ±3um | ||||||
| Vacuum plate | aluminum plate with vacuum (convenient for substrate adsorption) | ||||||
| Vacuum plate size | L410mm X W200mm X H30mm | ||||||
| Scraper adjustable range | 0～3.5mm | ||||||
| Power supply | 220V/50Hz | ||||||
| Weight | 48KG | ||||||
| Dimensions | L549mm X W305mm X H335mm | ||||||

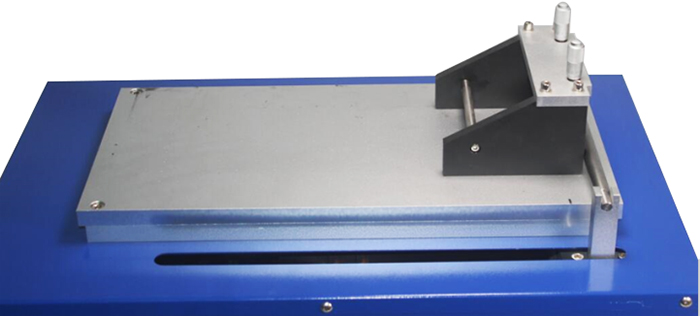

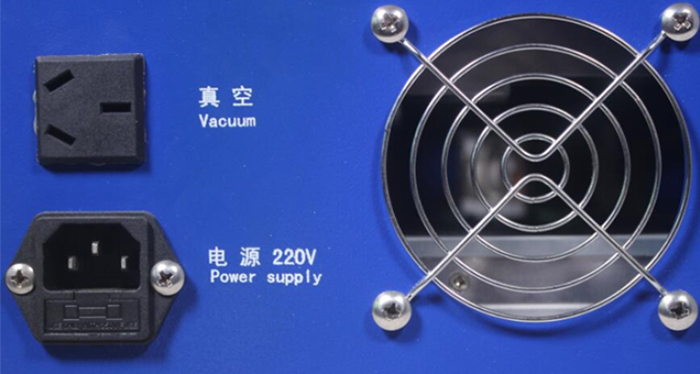

Product Image
