Coin Cell Three Electrode Split Test Cell/Splitting Able Cell Test For Lab Research
This Three Electrode Split Test Cell is designed for the R&D of rechargeable battery materials by testing three electrodes.
Item No.: JT-STC-3
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

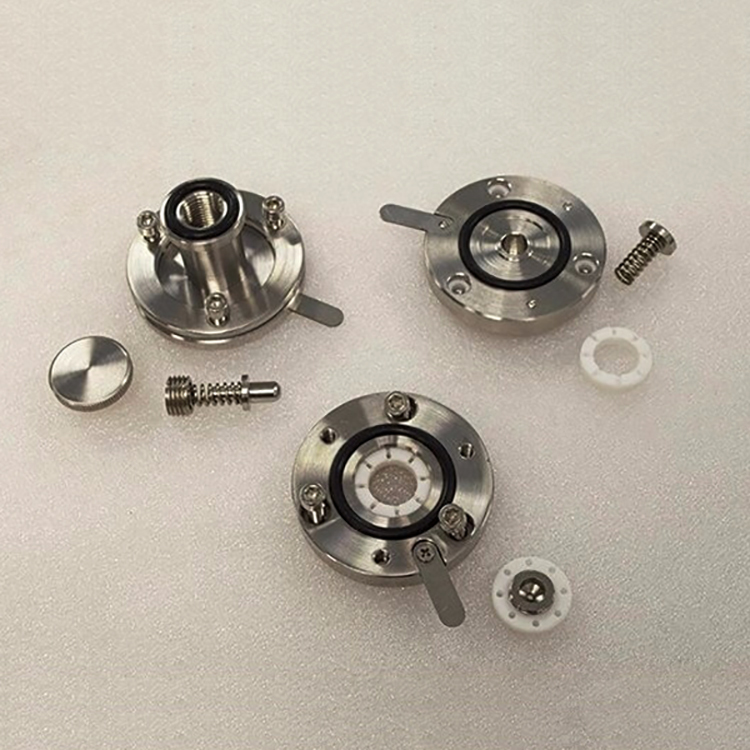

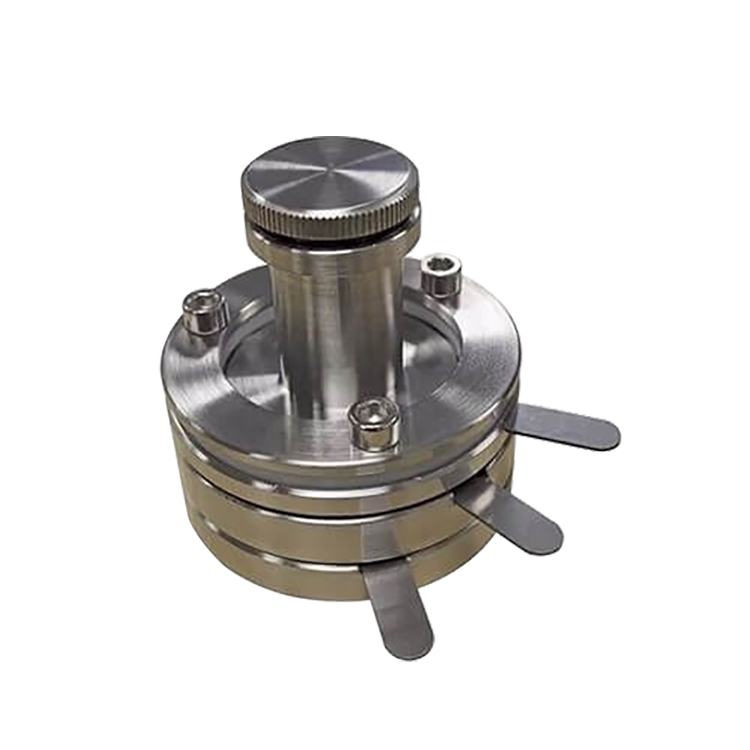

15 mm Diameter Three Electrode Split Test Cell For R&D Coin Cell Battery
Three electrode split test cell is designed for R&D of rechargeable Li-ion battery materials.
It is designed to test various electrodes easily and quickly by providing the user a structure to simulate assembled coin cells without the need to crimp actual coin cell cases.

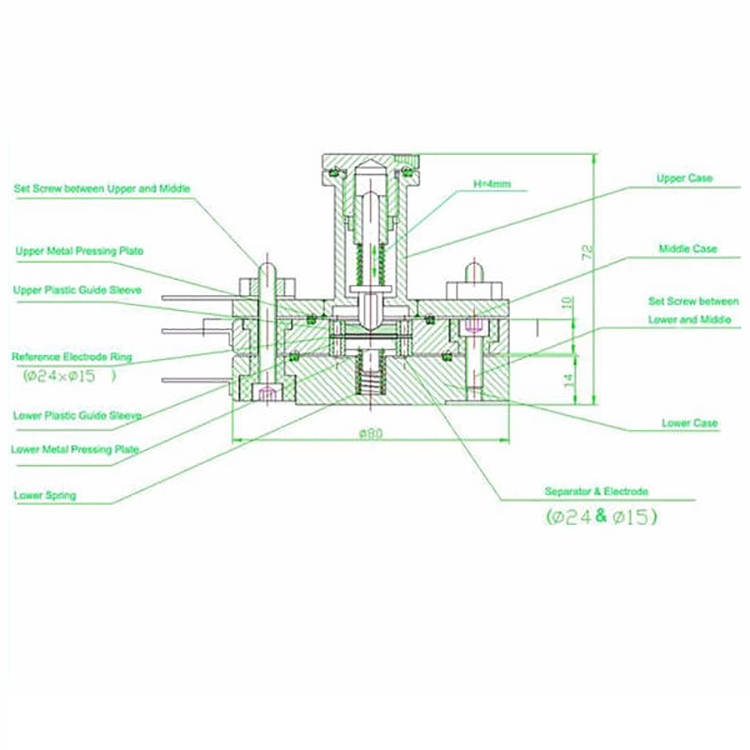

Two sides of the test cell connect to both electrodes (the anode and cathode), with the middle being connected to the reference electrode which can be used for monitoring voltage variations of the two electrodes. This test cell can accept 15 mm diameter electrodes and 24mm separators.
Specification
| Diameter | Electrode Diameter: 15 mm Separator Diameter: 24 mm |

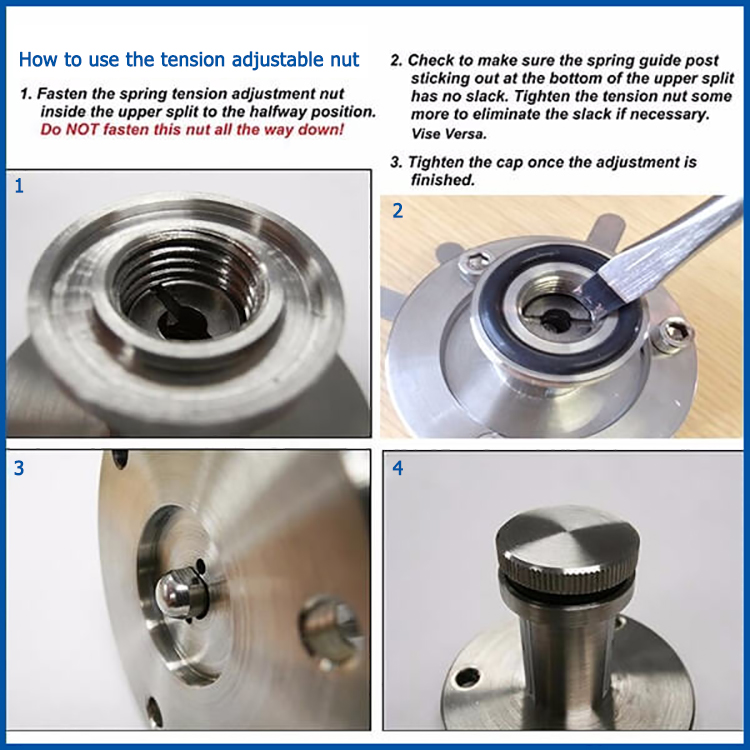

| Features | - Full stainless steel structure - Sealed by electrolyte corrosive-proof PTFE O-rings - Electrolyte corrosive-proof guide sleeve capable of withstanding up to 250 ºC - Adjustable spring tension on top to accept various electrode thicknesses - Easy to separate after testing- Small enough to be put into and taken out from a glove box |
Product Detail
| Type | Product Features |
| Stainless Steel Two-Electrode Split Test Cell | Optional 10, 12,15,19, 20, 24 mm diameter insert |
| Stainless Steel Three-Electrode Split Test Cell | Optional 10, 12,15,19, 20, 24 mm diameter insert |
| Split Test Cell for Lithium-Air Battery Research | The recessed are can accommodate the electrodes with size up to 16mm diameter |
