Item No.: JT-EQ-SPCW
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Split-able Pouch Cell with Quartz Window for In-situ Analysis of Battery, Splittable In-situ Pouch Cell
The EQ-SPCW is splittable pouch cells with a double quartz window for X-Ray or Raman in-situ analysis. The split pouch cell is made of Nylon or Peek. Its detachable design allows you to test the pouch cell behavior as well as structural changes of electrodes easily, quickly and cost-effectively.
Specification
| Design Features | - 30 mm diameter quartz window installed on two sides of pouch cell for transparency measurement - Pouch cell is sealed by PTFE O-ring without liquid and gas leaking - One pressure gauge is installed on top to monitor pressure. You may remove the gauge and use 1/4 female port to inject electrolyte into the pouch cell - The pouch cell is easy to assemble with only four cap mounting screws - It is easy to separate after the test for microstructure analysis - Space-saving, compact design allows you to put it into the glove box | |||
| Material (Please select at the options bar) | - Nylon or PEEK (Poly Ether Ether Ketone) selectable from the product options bar - Body: Electrolyte corrosive-proof Nylon which can sustain with temperature up to 80ºC and O-ring: Sealed by electrolyte corrosive-proof PTFE O-rings - Body: PEEK (Poly Ether Ether Ketone), which is a semicrystalline thermoplastic with excellent mechanical and chemical resistance properties that are retained to high temperatures and O-ring: Sealed by electrolyte corrosive-proof FKM O-rings | |||
| Structure | Standard size: - Cathode Die: 57mm (L) x 44mm (W). with 10mm (L) x 10mm (W) protrude current collector - Anode Die: 58mm (L) x 45mm (W). with 10mm (L) protrude current collector Customized size pouch cell is available upon request | |||

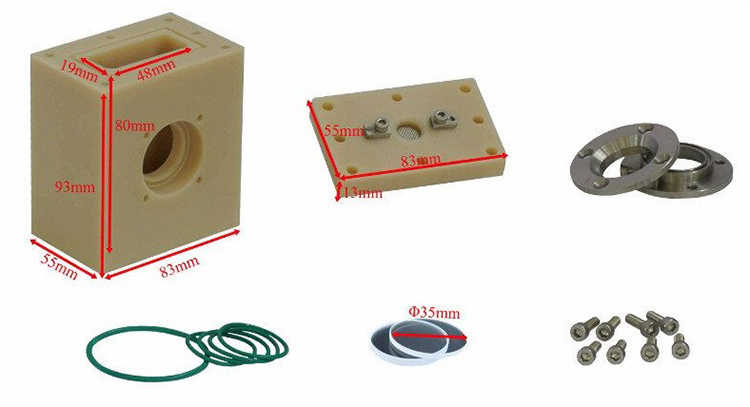

Product Detail
__________________________________
Email: [email protected]
Tel./WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
The EQ-SPCW is splittable pouch cells with a double quartz window for X-Ray or Raman in-situ analysis. The split pouch cell is made of Nylon or Peek.
