Item No.: JT-HCM-3
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
CR2032 2025 2016 Manual Hydraulic Coin Cell Crimper Sealing Machine For Button Cell Assembly
This hydraulic battery crimper has a new design and CE Certified manual coin cell crimper with lighter weight and a smaller footprint.
The coin cell crimping machine is suitable for sealing various types of coin cells such as CR2032, CR2025, and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.
Specification

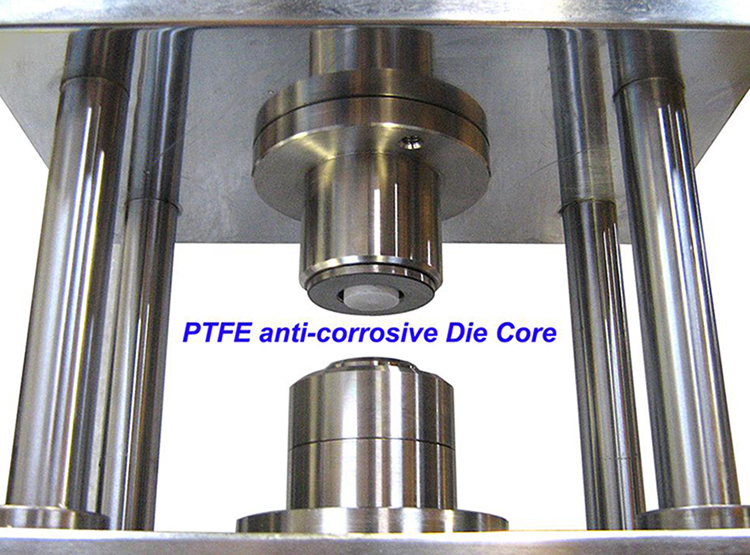

Features | Heavy-duty steel frame PTFE Anti-Corrosion Core prevents coin cells from being short-circuited |

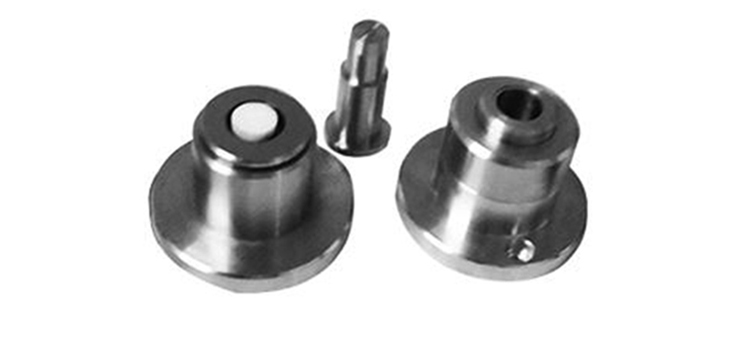

Crimping Die | Optional die available from product option for crimping CR20XX, CR12XX, CR23XX, CR24XX, AG3, AG5 |
Pressure | Max. 8 metric Tons hydraulic pump with automatic pressure relief Max.200 Kg/cm2 on CR20XX series coin cell |
Warranty | One-year limited manufacturer warranty with lifetime support. |
Product Dimensions | 223mm X 170mm X 325mm |
Compliance | CE Certified |
Net Weight | 25 kg |
Application Notes | Attention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell). |

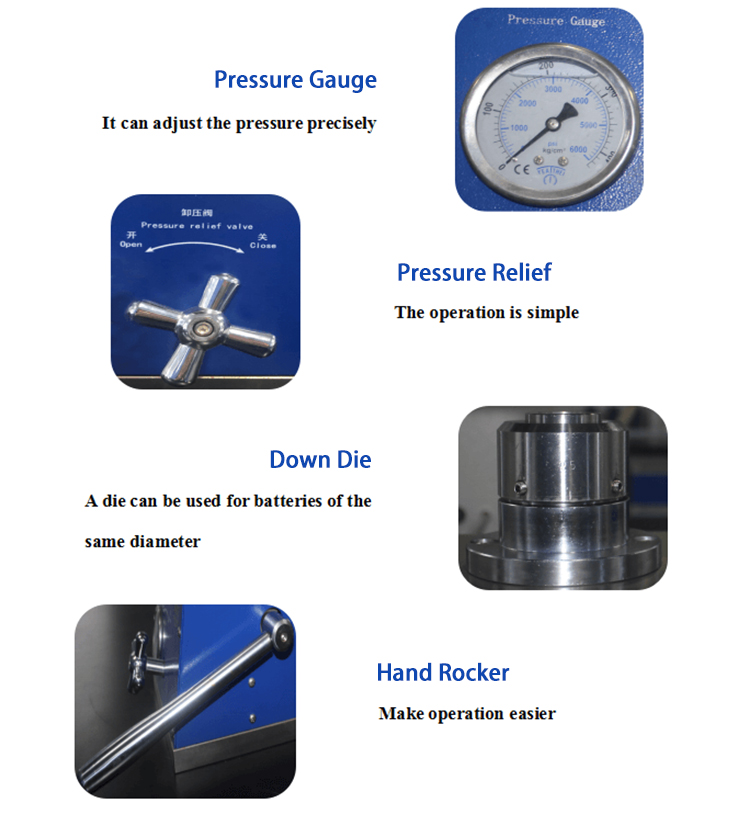

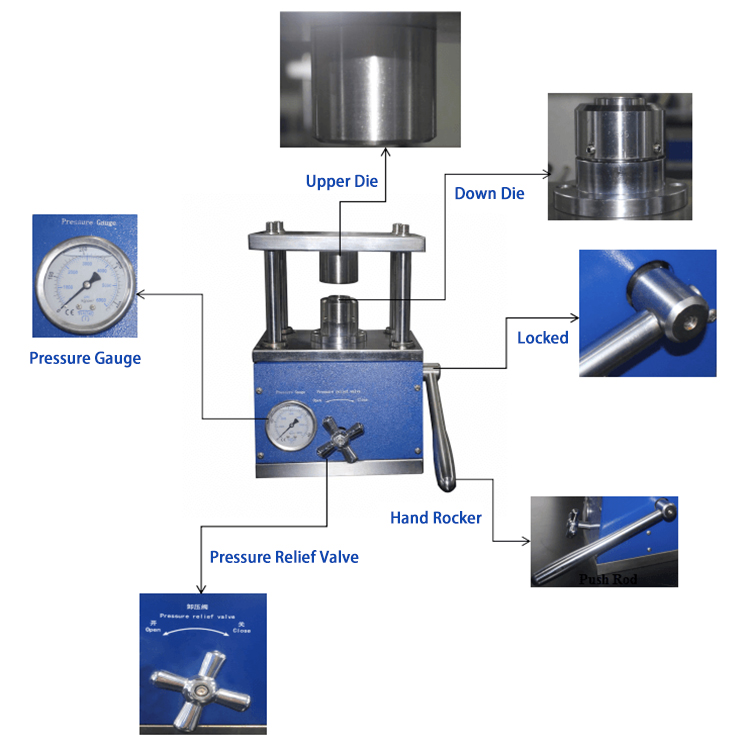

Detail Pictures
