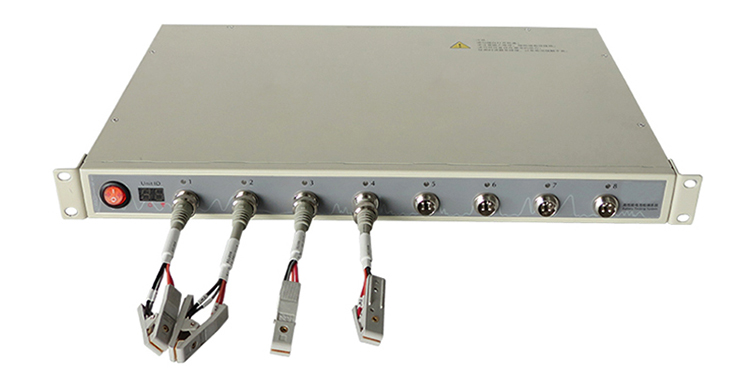

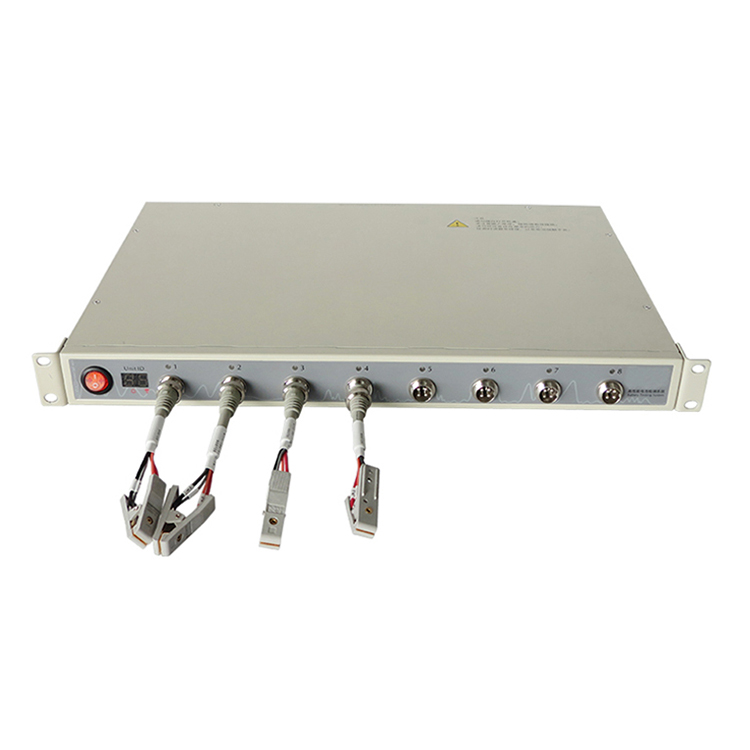

5V10mA 8 Channel Lab Coin Cell Battery Tester Equipment With Dual Testing Range

Model

JT-BT-5V10mA Coin Cell Tester

Input Power

AC 220V ±10% 50Hz

Resolution

AD: 16bit; DA: 16bit

Input Resistance

≥10 GΩ

Input Power

25W

Voltage

Constant Voltage Range

25mV~5V

Discharge Min Voltage

0V

Accuracy

± 0.05% of FS

Stability

± 0.05% of FS

Current

Per Channel Current Range

Range1: 5uA-1mA , Range2: 1mA-10mA

Accuracy

± 0.05% of FS

Constant voltage cutoff current

Range1：2uA；Range2：0.02mA

Stability

± 0.05% of FS

Power

Per Channel Output Power

0.05W

Stability

± 0.1% of FS

Time

Current Response Time

1ms (0-Full Range)

Step Time Range

≤(365*24 )hour/step，

Time Form Support 00：00：00(h、min:s、ms)

Data Recording

Record Condition

Minimum Time Interval: 100ms

Minimum Voltage Interval: 10mV

Minimum current interval: Range1: 2uA; Range 2: 0.02mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge、Constant Voltage Charge、

Constant Current and Constant Voltage Charge、CPC

End Condition

Voltage, current, relative time, capacity -△V

Discharge

Discharge Mode

CCD、CPD、CRD

End Condition

Voltage、Current、Relative Time、Capacity -△V

Pulse

charge

CCC, CPC

Discharge

CCD, CPC

Min Pulse Width

500ms

Pulse number

A single pulse step supports 32 different pulses

Automated Switch

Automated switch from charge to discharge for each pulse

End Condition

Voltage, Test Time

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function, Max Support 3 Layers

Protection

Software Protection

Power-down Data Protection

Off-line Testing Function

Setting Protection Condition, etting Parameter: Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time

Hardware Protection

Additional Anti-reverse Protection Model

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

DCIR testing

Support

Voltage and Current Testing Sample

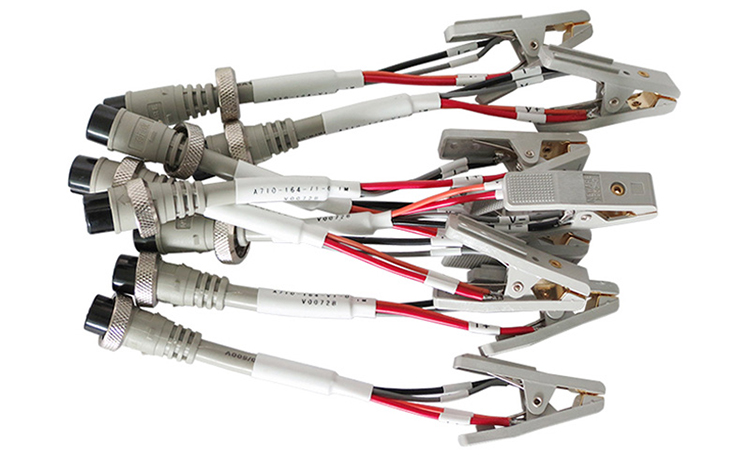

4-wire connecting

Noise

<85dB

Database

MySQL Database

A Means of Communication of Upper Machine

TCP/IP Protocol

Data Output

EXCEL、TXT、Graph

Communication Interface

Ethernet Port

Per Unit Main Channels No.

8

Dimensions

250*200*60(mm)
