8 Channel Coin Cell Battery Tester Analyzer 5V5mA-4008 With DCIR Testing
JT-BT-5V5mA coin cell battery tester is an eight-channel battery analyzer to analyze small coin cells with a range current of 0.025-5mah, voltage 0-5v.
Item No.: JT-BT-5V5mA
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
JT-BT-5V5mA coin cell battery tester is an eight-channel battery analyzer to analyze small coin cells with a range current of 0.025-5mah, voltage 0-5v. Each channel of the analyzer has an independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.
This Button Battery Tester provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc.
The Button Battery Tester is suitable for all kinds of coin cell batteries such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.
The 4 system tester is with quicker testing speed and adds DRIR testing.
Specifications
Project index | Parameter index | |
Input Power | AC 110V/220V ±10% 50Hz/60Hz | |
resolution | AD：16bit; DA: 16bit | |
Input Resistance | ≥10 GΩ | |
Input Power | 354mW | |
Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure | |
Channel Control Mode | Independent Control | |
Voltage | Constant Voltage Range | 25mV~5V |
Discharge Min Voltage | 0V | |
Accuracy | ±0.05% of FS | |
Stability | ±0.05% of FS | |
Current | Per Channel Current Range | 0.025mA-5mA |
Accuracy | ±0.05% of FS | |
Stability | ±0.05% of FS | |
Power | Per Channel Output Power | 0.025W |
Stability | ±0.1% of FS | |
Time | Current Response Time | 1ms (0-Full Range) |
Step Time Range | ≤(365*24 )hour/step， Time Form Support 00：00：00(h、min:s、ms) | |
Data Recording | Record Condition | Minimum Time Interval: 100ms |
Minimum Voltage Interval: 10mV | ||
Minimum Current Interval: 0.01mA | ||
Record Frequency | 10Hz | |
Charge | Charge Mode | Constant Current Charge、Constant Voltage Charge、 Constant Current and Constant Voltage Charge、CPC |
End Condition | Voltage、Current、Relative Time、Capacity | |
Discharge | Discharge Mode | CCD、CPD、CRD |
End Condition | Voltage、Current、Relative Time、Capacity、 | |
Pulse | charge | CCC, CPC |
Discharge | CCD, CPC | |
Min Pulse Width | 500ms | |
Automated Switch | Automated switch from charge to discharge for each pulse | |
End Condition | Voltage, Test Time | |
Cycle | Loop Measure Range | 1~65535 times |
Max Steps Per Loop | 254 | |
Nested Loop | Nested loop Function, Max Support 3 Layers | |
Protection | Software Protection | l Power-down Data Protection |
l Off-line Testing Function | ||
l Setting Protection Condition, Setting Parameter: Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time | ||
Hardware Protection | Additional Anti-reverse Protection Model | |
DCIR testing | Support | |
Voltage and Current Testing Sample | 4-wire connecting | |
Noise | <85dB | |
Database | MySQL Database | |
A Means of Communication of Upper Machine | TCP/IP Protocol | |
Data Output | EXCEL、TXT、Graph | |
Communication Interface | Ethernet Port | |
Per Unit Main Channels No. | 8 | |
Dimensions | 250*200*60(mm) | |

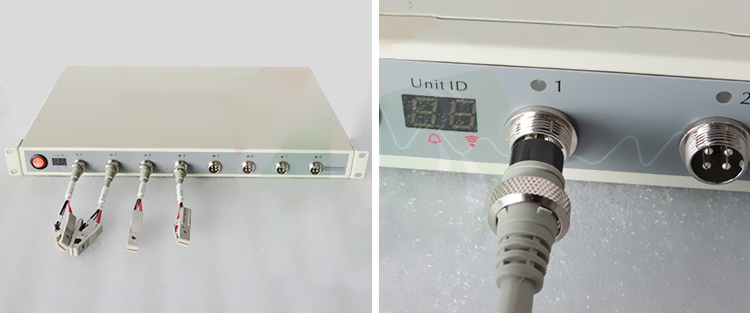

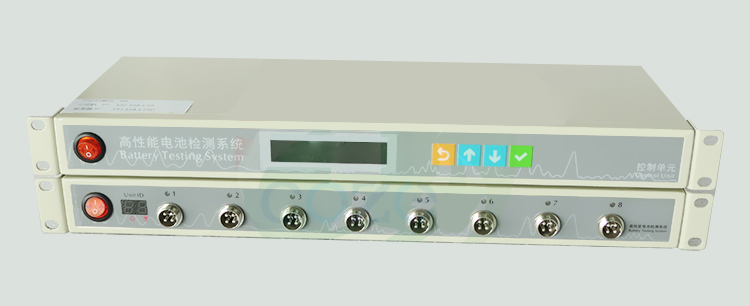

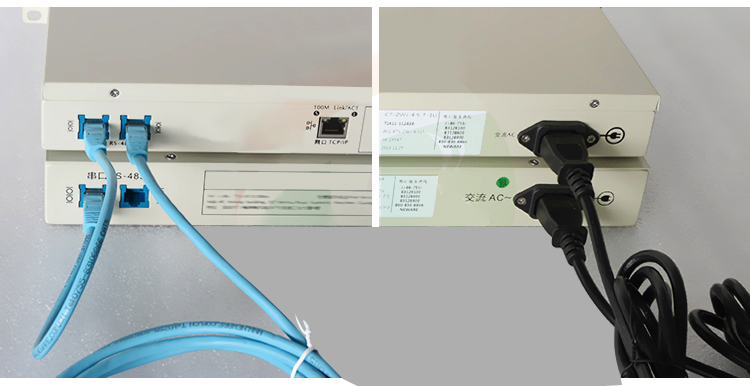

Product Image
