Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-AG70
Brand: Jingtong
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7-15 Days

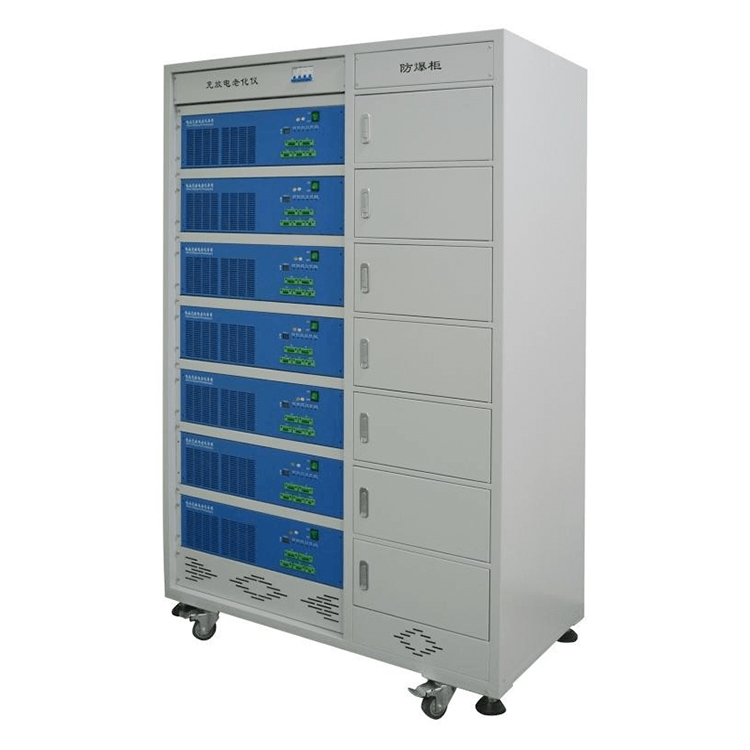

18650 26650 Battery Pack Aging Cabinet Lithium Battery Charging & Discharging Testing Machine
This battery pack aging cabinet is mainly used for lithium battery charging and discharging cycle tests. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding step, the battery can be tested according to the set process.
1. Equipment Application Scope and Function Introduction
1). Scope of application:
The charge-discharge test equipment is mainly used for the charge-discharge cycle test of lithium batteries.
2). Test Items:
Battery charging protection voltage, discharge protection voltage, capacity, etc. The equipment has four test steps: charging, discharging, shelving and cycling. By editing the corresponding steps, the battery can be tested according to the set process.
2. Main Performance of Test Equipment
1). Charge Discharge Function:
It has a constant current and constant voltage charging function and constant current discharge function. It can charge and discharge the battery and record the battery capacity.
2). Charge Discharge Interface:
Fully meet the requirements of battery pack charging and discharging same port and charging and discharging sub port, i.e. 2 wires (P+ P -) and 3 wires (P+ P- C-).
At the same time, it can be aging the electric tool battery with positive plate charging protection and negative plate discharge protection(CH+ P+ P-).
3). Check Voltage Protection:
By charging and discharging the battery, check whether the charging protection and discharge protection of the battery work.
4). Safety Protection:
Anti-reverse connection protection function; Upper and lower voltage limit protection; Safe discharge current protection.
5). Online mode:
If the instrument is single or less than 5, it can be connected to PC through a serial port; When more than 5 sets adopt the network connection mode, the PC only needs to provide a network port to control less than 60 sets of instruments.
6). Control System:
The software system adopts the classic and mature C / S mode, and the communication modes include serial ports and networks. The serial port can realize the accurate communication of several instruments in a short distance, and the network can realize the accurate communication of multiple instruments over a long distance.
7). Upper Computer Software:
Based on the windows operation interface, the SQL database is used to store the test data, which is very convenient for the staff to query and export the data online. The charge-discharge aging curve can be viewed according to the battery bar code, time and equipment number, and the curve can be exported at the same time.
Technical Parameters
Input Power | AC 220V ±10% / 50Hz | |
Voltage | Measuring Range | 7~70V |
Accuracy | ±(0.2% of reading + 0.2% of range) | |
Current | Charging Range | 50~10000mA |
Charging Accuracy | ±(0.2% of reading + 0.2% of range) | |
Discharge Range | 50~20000mA | |
Accuracy | ±(0.2% of reading + 0.2% of range) | |
Charge | Constant Voltage Cut-off Current | Minimum 50mA |
Capacity | Accuracy | ±1‰ |
Power | Discharge Power | ≦1400W |
Time | Patrol Inspection Time | Real time receiving < 2S |
Timing Range | 0 ~ 999 hours / work step | |
Data Recording Interval | ≥5S | |
Median Machine Version | 1.1 series | |
Charge | Charging Mode | Constant current and constant voltage charging |
Cut off Condition | Voltage, current, relative time, overcharge protection | |
Discharge | Discharge Mode | Constant current discharge |
Cut off Condition | Voltage, relative time and over discharge protection | |
Cycle | Cycle Measurement Range | 1 ~ 999 times |
Number of Single Cycle Steps | 100 | |
Voltage and Current Detection Sampling | Four wire sampling | |
Database | Using SQL database to manage test data | |
Host Computer Communication Mode | Based on TCP / IP protocol and serial port | |
Data Output Mode | Excel, TXT, Chart | |
Communication Interface | Network port | |
Number of Channels Per Cabinet | 7 channels, 7 rows and 1 column | |
4. Product Structure
Chassis Size | W*D*H：600*450*170（mm） |
Cabinet Size | W*D*H：1130*600*1820（mm） |
Discharge Battery Space Size | W*D*H：370*600*170（mm） |
Number of Modules | Up to 7 channels supported |
Product Pictures
