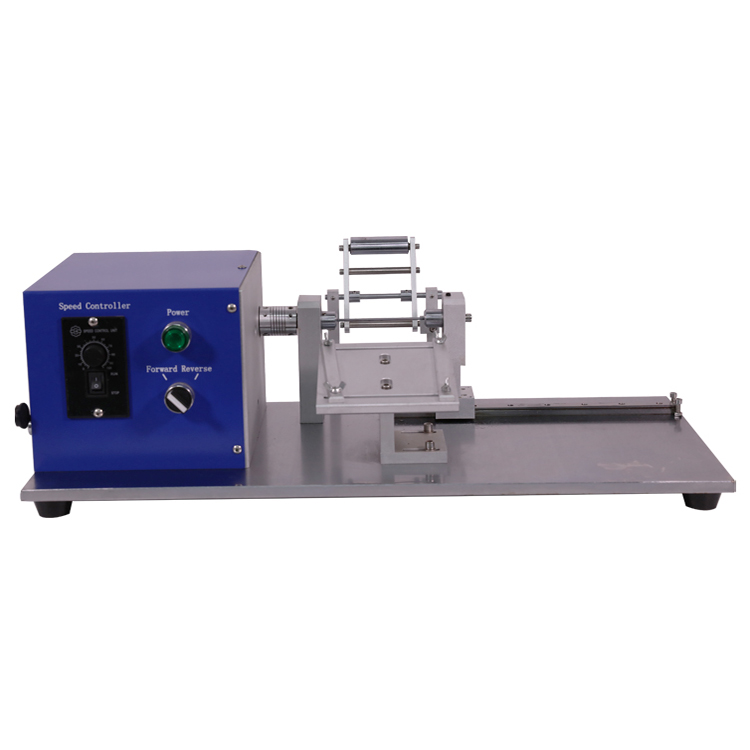

Semi-Automatic 18650 Cylindrical Battery Electrode Winding Machine for Battery Assembly

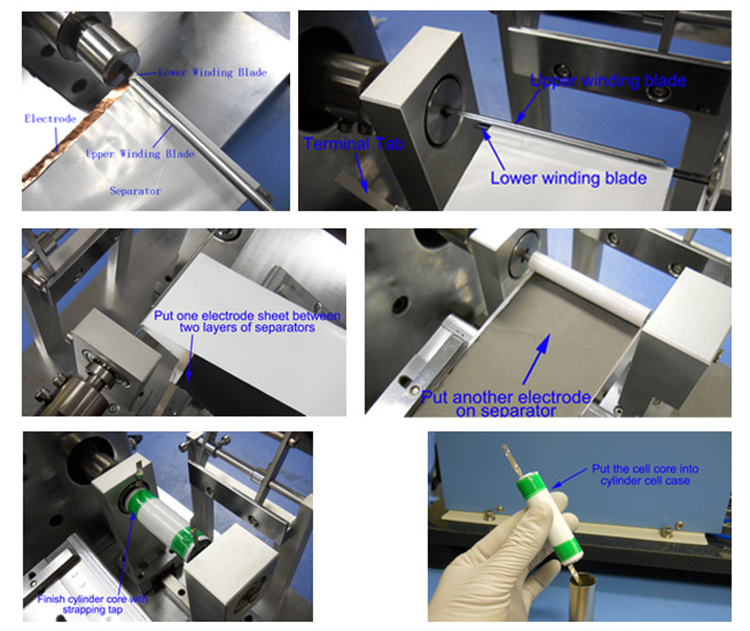

The 18650 cylindrical cell electrode winding machine is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors. The positive and negative sheets and the separator are wound into batteries.
The footswitch controls the forward and reverses rotation. It has the characteristics of easy operation, safe and reliable, beautiful appearance, etc.
Features
1. The size of the winding machine is small and easy to adjust, operate and maintain.
2. The winding needle yaw degree is small.

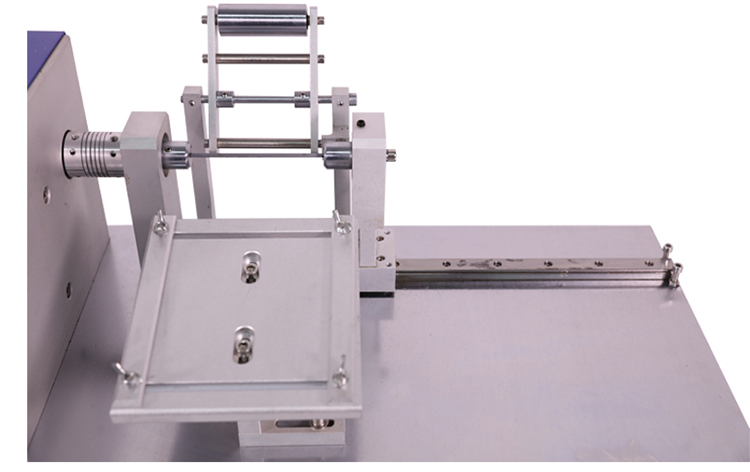

3. The up and down, left and right, and front and rear positions of the guide plate groove and ruler can be adjustable.
4. Winding idler to ensure the winding tightness when the battery is wound.
5. Increase the winding tail bracket to improve the winding accuracy of the battery.

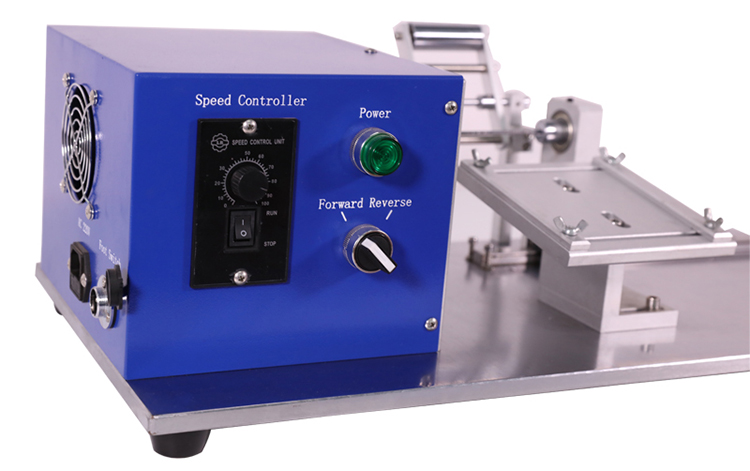

6. Winding can be forward and reverse, winding step-less speed regulation.
7. The machine is small in size, exquisite and beautiful in appearance, and easy to operate.
Specification
Model | Electrode Winding Machine |
Working Voltage | AC110V/220V, 50/60HZ |
Power | 50W |
Warranty | Two Year Limited Warranty With Lifetime Support |
Winding Speed | 0 - 170 RPM Adjustable |
| Applicable flat battery cell size (mm) | Length (20～100) * width (20～80) * thickness (0.5～10) according to the customer's choice. |
| Applicable cylindrical batteries | Φ35*L90mm or less (replacement of winding flat batteries and cylindrical batteries requires replacement of winding needles) |
Winding Blade | The Winding Width Depends On The Width Of The Winding Blade Customized Square Winding Blade According To Battery Model |
Winding Mode | Switchable Between Clockwise And Counterclockwise |
Output | 70-100EA/H, According To Battery Size And Manual |
Product Dimensions | L600mm * W310mm * H290mm |
Net Weight | About 30kg |
Application Notes | This machine can be used for prismatic battery with square winding shaft, And you can also choose the round winding shaft For cylinder cell core winding, We will supply with the suitable winding Accessories according to your battery model |
Product Image
