Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-CSE-300A
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
18650 32650 21700 Cell Semi-Automatic Slitting Machine for Electrodes of Cylinder Battery
This 18650 slitting machine is a CE Certified semi-automatic slitting machine (roll slitting) for preparing electrodes of cylinder batteries in R&D laboratories.
Specification
| Working Voltage | Machine Input: 22-24V DC with 5mm barrel connector Power Input: 110-240V AC to 22V DC adaptor (120W) with CE / ETL approval, which can be used worldwide |
| Max. Power Consumption | 100W |

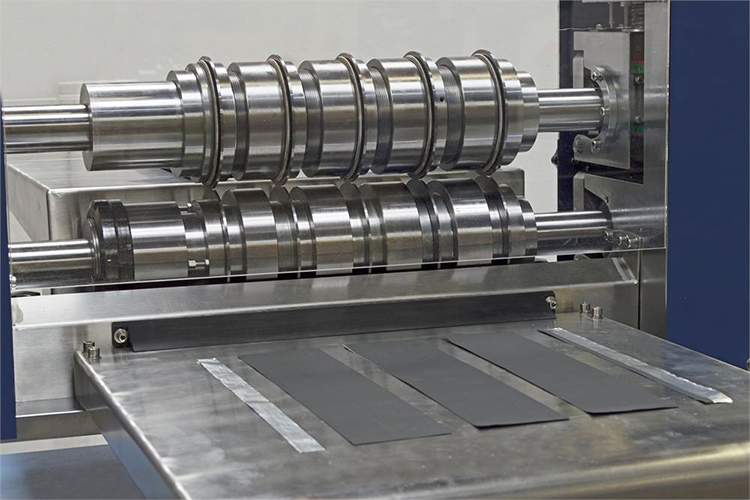

| Cutting Method | Top and bottom rollers with total 10 ring cutting blades installed (5 blades per roller) Blade Materials: Tungsten alloys Blade Diameter: 100mm |
| Cutting Width | 4 sets of slitting blades (two blades with slitting width of 58mm, and another two with slitting width of 56 mm) are the typical sizes for 18650 cylindrical batteries. Customization: 25 - 250mm cutting width is available at extra cost, please contact us for details. |
| Cutting Thickness | 100 - 300 microns |
| Cutting Speed | 0 - 4 meter / minute Adjustable |
| Product Dimensions | 840mm(L) x 200mm(W) x 460mm(H) |
| Compliance | CE certified |
| Net Weight | 110kg (250 lbs) |
| Warranty | One year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
Product Detail
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Jingtong Battery Equipments provides a full set of cylindrical cell battery-producing equipment from mixing to last testing equipment, including the tub furnace, ball mill, vacuum mixer, electrode coating machine, electrode rolling press machine.
The finished battery pack comprehensive general testing machine is used to quickly and accurately test the performance of the finished battery pack. The main test items are open circuit voltage, AC internal resistance. etc.
The 18650 21700 26650 32600 Battery Cases with Anti-Explosive Cap and Insulation O-ring, Used for 18650 21700 26650 32600 cylindrical cell battery research, producing
The cylindrical battery grooving machine is suitable for uniform and automatic rolling grooves of cylindrical steel shells (or capacitor aluminum shells) equipped with batteries.
The 18650 electrode winding machine is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors.
This DC double-needle 18650 spot welding machine is specifically designed for professional Li-ion Battery Research. It is mainly used for Welding PCB for the mobile phone battery packs and EV battery packs for battery and Nickle tab weld.
This battery electrolyte diffusion chamber vacuum standing box is specifically designed for professional Li-ion Battery Research.
The battery pack aging machine is mainly used for lithium battery charging and discharging cycle tests. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc.
This battery pack aging cabinet is mainly used for lithium battery charging and discharging cycle tests. The test items include battery charging protection voltage, discharging protection voltage, capacity, etc.
The JT-ACS-50 pneumatic cylindrical battery sealing machine is used for various sizes of cylinder cells and supercapacitor sealing processes.
The JT-HSM650 cylindrical cell sealing machine is a compact hydraulic crimping machine for sealing all types of cylinder cases in battery R&D labs.
This pneumatic 18650 cell spot welder is mainly used for cylindrical battery nickel tab welding, suitable for 0.02-0.2mm welding thickness.
This Electric lab roll press machine can be adjusting the thickness of the Li-Ion batteries electrode after coating and drying.
The JT-HSM650 cylindrical cell sealing machine is a compact hydraulic crimping machine for sealing all types of cylinder cases in battery R&D labs.
