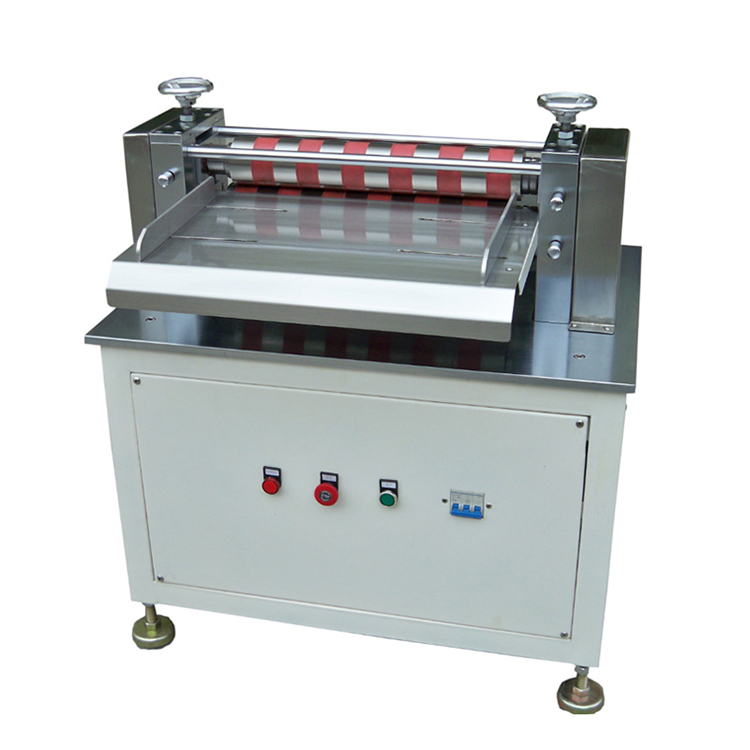

Laboratory Electric Li-Ion Battery Electrode Roller Press Machine With Heating Function
The heating electric vertical roller press machine is mainly suitable for the electric rolling of battery materials in the laboratory
Item No.: JT-SM-500B
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

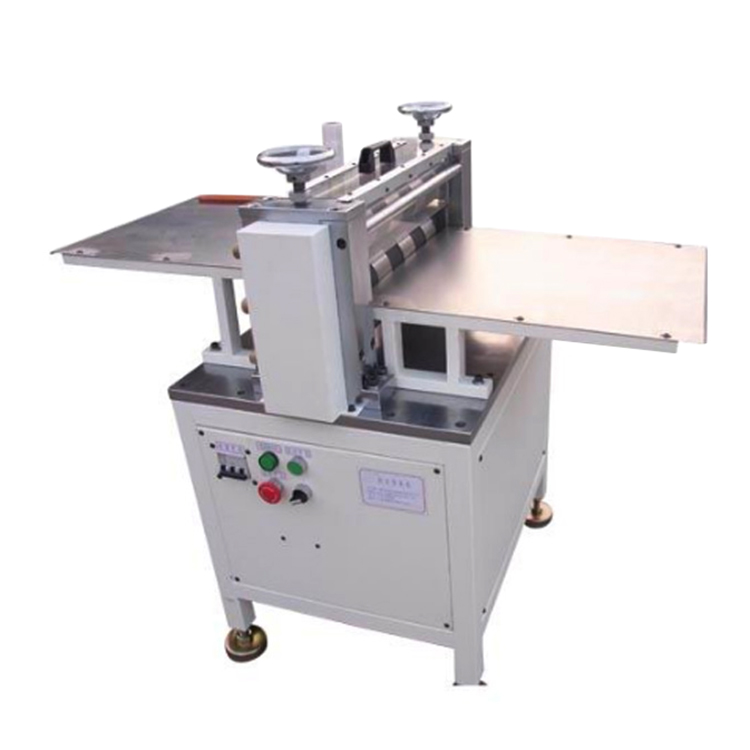

High-Accuracy Semi-Automatic Lithium Battery Electrode Slitting Machine for Lab and Production
The lithium battery electrode slitting machine is a semi-automatic slitting machine for preparing electrodes of cylinder batteries and prismatic batteries in R&D laboratories and production lines.
This slitting machine can slit electrodes with widths up to 500mm, and with finished slitting widths from 20mm to 400mm with different model cutter blades.
This equipment is suitable for rechargeable lithium batteries cathode and the anode electrodes of the longitudinal cutting, the electrode of the base material can be Aluminum Foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is important equipment in plate processing.
Specification
| Model | Battery Electrode Slitting Machine JT-SM-500 |
| Source voltage | AC 110V-220V, Customized, 50HZ |
| Power | 800W |
| Warranty | Two years limited warranty and lifetime support |
| Slitting mode | Single knife hobbing |
| Knife type | Upper and lower round knife |
| Slitting width | 20-500mm |
| Slitting thickness | 100-300um |
| Hob diameter | Φ80 mm |
| Slitting speed | 10m/min, Adjustable |
| Dimension(L*W*H) | 610*610*1100mm |
| Weight | 200kg |
Product Image
