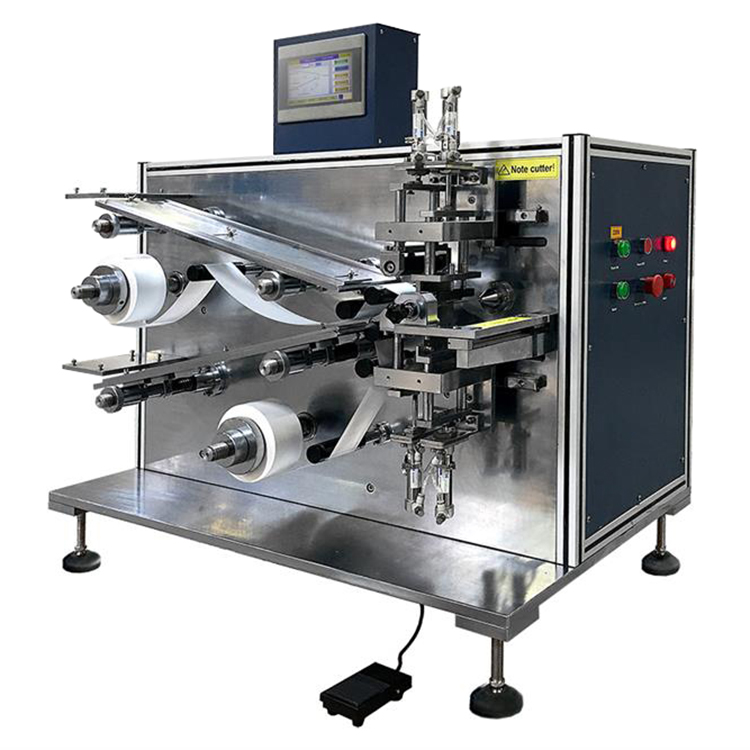

18650 26650 32650 Semi-Automatic Electrode Winding Machine Winder for Single Cylindrical Cell Assembling

The JT-112A-EA is a semi-automatic winding machine for accurate assembly of single cylindrical cell cores (also known as “jelly roll”) of 18650, 21700 or 32650 cells. Using this semi-automatic winder, cathode and anode films, separated by the top and bottom separator films, are rolled up into a hollow cylinder casing for cylindrical battery applications. It is an ideal tool for the reliable and precise production of high-quality windings of electrode cores.

Feature
- Color touchscreen control
- Winding motor direction control: forward and reverse switchable (manual mode)
- Adjustable tension (0 - 4 N) for both top and bottom separator films
- Vacuum-assisted, 1200 mm long feeder bed for accurate cathode/anode film positioning & feeding
- Automatic finish cut upon the completion of the configured number of rotations
- Suitable for cylindrical battery sizes such as 18650, 21700, 26650 and 32650 (Jelley roll dia. 14mm~32mm; length 25~70mm)

Specification

Input Power	Single-phase, 220 VAC, 50 / 60 Hz 1 kW power
Compressed Air	Compressed air of 0.7 MPa is needed for the operation of this machine (Please note the air compressor is not included.)
Cathode / Anode Feeding	Loading material: cathode/anode sheets, such as aluminum foil coated with LiFePO4 or LiCoO2, NMC (cathode), and copper foil coated with graphite (anode) Length range: < = 1200 mm recommended (length of the feeder bed plus extension) Width range: 25 - 70 mm (adjustable on feeder bed) Thickness range: 100 – 300 μm
Separator Feeding	Loading material: separator film rolls, such as polyethylene (PE) or polypropylene (PP) Length range: separator roll with a diameter < 250 mm Width range: 25 - 70 mm Thickness range: < 100 μm Tension range: 0 - 4 N for both top and bottom separator films
Winding	Winding needle size: 3.5 mm OD Electrode winding size: 14-32 mm OD, 25-70 mm in length To wind an electrode core with a certain OD Winding speed: 0-400 rpm adjustable Winding precision: < 0.5 mm edge roughness
Size	1000 mm L x 700 mm W x 900 mm H
Net Weight	150 kg
Warranty	One year limited warranty with lifetime support Rusting or damage due to improper storage conditions or maintenance is not covered by warranty

Product Detail
