Item No.: JT-ESM220A
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

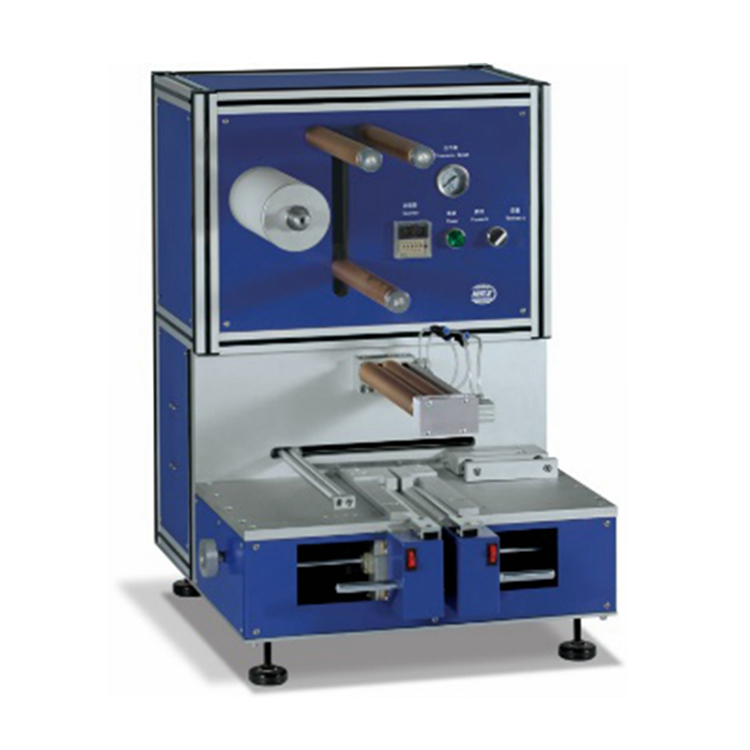

Semi-Auto Pouch Cell Electrode Stacker Stacking Machine for Lithium Battery Stacking
This semi-auto stacking machine is suitable for the lamination process of battery cells. The positive and negative electrodes and the separator are laminated in a Z shape. It is a device that can be applied to the lamination process of lithium-ion battery pole pieces.
The electrode stacker adopts the isolation membrane automatic tension control system, the cylinder drives the diaphragm to move left and right to realize the zigzag lamination, and the cantilever design is easy to operate. Compared with the manual stacking machine, this equipment has the characteristics of high stacking efficiency, good stacking neatness, and a large range of applicable battery sizes. It is an ideal choice for R&D sample production and small batch trial production equipment.
Advanced Feature
1. The adjustment, operation and maintenance of the machine are simple and easy.
2. It can be used in a wide range of laminations.
3. Semi-automatic lamination and balance tension control system.
4. Automatic counting and zeroing function.
5. Automatically maintain the last parameter state function after power failure and non-use.
6. The whole machine is suitable for a wide range of battery sizes.
7. Use a foot switch to control cylinder action.
8. The adjustment, operation and maintenance of the machine are simple and easy.
9. High efficiency with digital timer.
10. Table type, can be placed on the ordinary desktop, exquisite and beautiful appearance.
Specification
| Item No | Semi-auto stacking machine CZ-ESM220 |
Working Voltage | AC220V/110V 50/60Hz |
Power | 200W |
Applicable electrode size | 200mm x 150mm Max. 44mm x 44mm Min. Customizable to customer's request |
Max. battery core thickness | Piled up thickness<12mm |
Aligning accuracy | ±0.5mm |
Acceptable separator roll size | 220mm O.D Max. |
Slidable fixture | Two slidable fixtures ensure a compact, tight electrode stacking |
Electrode tongs | One electrode tongs are included for easy electrode pick-up |
Suggested Air Pressure | 0.4~0.6MPa (Air compressor is not included in the standard package) |
Product Dimensions | 480mm(L) x 560mm(W) x 650mm(H) |
Net Weight | About 50Kg |
Compliance | CE Certified |
Warranty | Two Years limited warranty with lifetime support |
Product Image
