Item No.: JT-112A-EA-2
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Precision Semi-Automatic Winder for Cylindrical Cell Electrode Assembly and Battery Research
MSK-112A-EA Semi-Automatic Cylindrical Winder Machine is a device that can be applied to the winding process of cylindrical lithium-ion battery pole pieces. Compared with the manual winding machine, the device has high winding efficiency, good winding uniformity, a large range of applicable battery sizes, and is more suitable for various cylindrical battery winding requirements of the lithium battery laboratory.
Feature

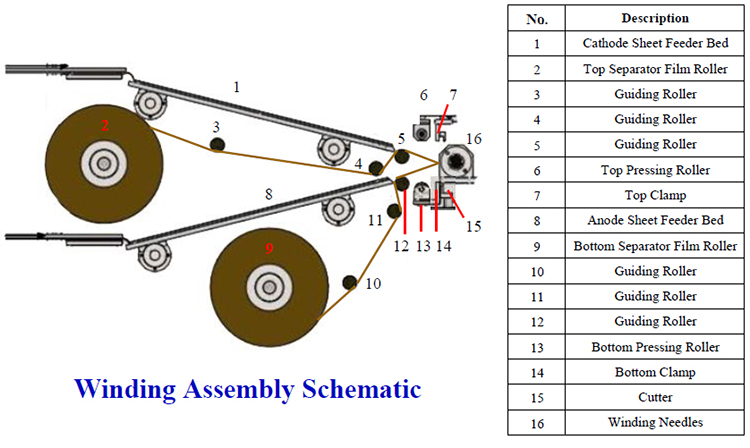

1. Single stand structure, diaphragm paper roll feeding, passive tension control, adjustable tension;
2. The pole pieces are placed manually, the clamps assist in positioning, and the vacuum aids suction to ensure the winding uniformity;
3. Winding speed and diameter can be set freely, and batteries with a diameter in the range of 14-32mm can be wound;
4. Automatically pull the isolation film, cut automatically, and stick the tape manually (provide automatic tape dispenser);
5. Compatible design, large battery size adjustment range;
6. PLC control, touch screen setting, foot switch operation, all parameters can be set.
Specification
| Power | Single-phase voltage AC220V ± 10% (110VAC can be customized), frequency 50Hz / 60Hz, power 1KW |
| Gas source | 0.5~0.8Mpa compressed air |
| Use environment | Recommended ambient temperature 25 ± 3 ℃, humidity 30 ~ 90RH, no vibration and electromagnetic interference |
| Winding method | Rolled diaphragm, sheet pole piece |
| Winding needle form | For plug-in winding needles, the standard diameter is 3.5mm; |
| Winding size | 14-32mm diameter, 25-70mm length |
| Winding accuracy | Uniformity better than 0.5mm |
| Guide slot length | 1200mm, Pole pieces can be slightly longer |
| Film cutting method | Automatic cut-off |
| Winding speed | Settable within 150g |
| Diaphragm roll diameter | Max. 300r / min can be set on the touch screen |
| Adhesive tape mounting | Max. 250mm |
| Film cutting method | Provide automatic tape dispenser, manual tape application |

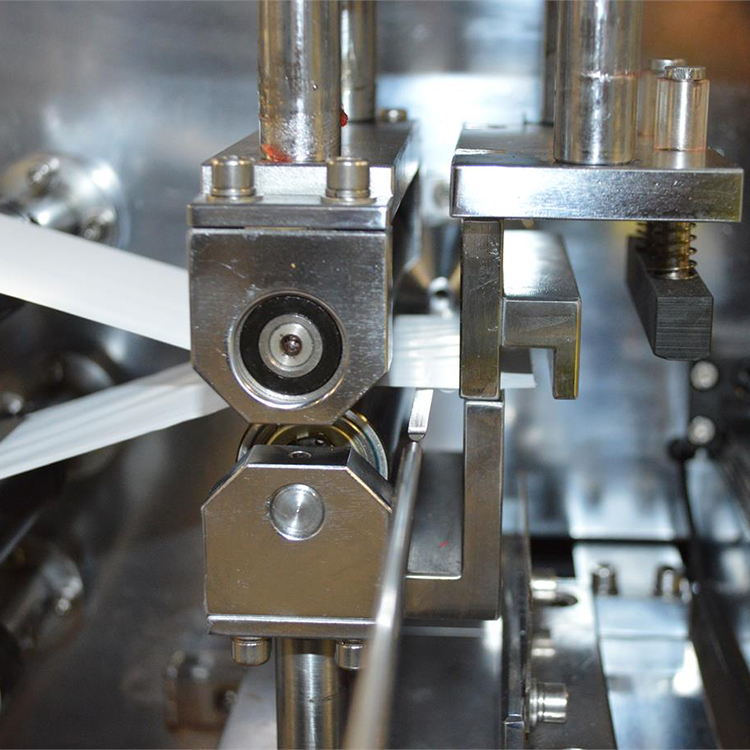

Product Detail
