Small Cylindrical Cell Winding Machine Electrode Winder For 18650 Battery Assembly
The 18650 electrode winding machine is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors.
Item No.: JT-WM-P-1
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

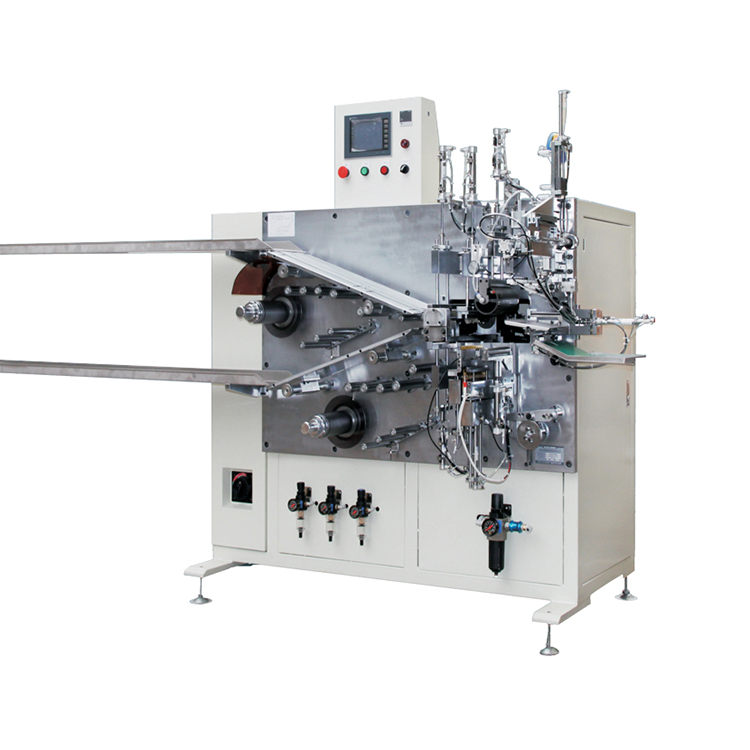

Semi-Automatic Winding Machine For Electrode Assembly Of Pouch Cell and Cylindrical Cell
The Battery Winding Machine is a semi-automatic winding machine used for lithium Prismatic battery precision winding for the production line. and suitable for the different models of battery by changing the winding blade, The change work is a simple operation.
Feature
1. Adopt a double needle structure, winding needle width can be adjusted continuously.
2. Artificial feeding electrode, automatic winding, automatic needle change, automatic termination of adhesive tape and automatic blanking.
3. Adopt an Embedded controller to realize the battery winding tension control, Using MATLAB to analyze battery separator diameter and roller core change, to generate the best fitting curve control winding process.
4. With functions of electronic CAM, to achieve single circle infinitely variable speed, effectively reduce the angular acceleration
5. Feeding and winding synchronous drive, don't need to follow, real-time transmission
6. The most advanced tension control system Can make batteries without outside tight inside loose phenomenon, effectively reducing the "S" shape problem that occurred.
7. With electrode dust removal system.
8. Electrode tension control as PIC 1.
Specification
Winding size | width 40-100mm, length 30-100mm, thickness 10mm |
Winding accuracy | neatness is better than 0.5mm |
Needle winding form | double-insertion trapezoidal winding needle, standard width 60mm |
Guide length | 1000mm, pole piece can be slightly longer |
Film cutting method | automatic cutting |
Tension control | can be set within 150g |
Width adjustment | Manually adjust the winding needle adjustment within 10mm, the excess part needs to be replaced |
Winding speed | adjustable on the touch screen |
Positive and negative ears | position can be set by motor unwinding |
Adhesive Tape Placement | provide automatic tape dispenser, manual tape |
Air source | 0.5~0.8MPa compressed air |
Power source | voltage single-phase AC220V±10% (110VAC can be customized), frequency 50Hz/60Hz, power 1KW |
Equipment size | L1300mm*W700mm*H920mm |
Weight | About 360KG |
Product Image
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
The 18650 electrode winding machine is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors.
The 18650 cylindrical cell electrode winding machine is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors.
The JT-112A-EA is a semi-automatic winding machine for accurate assembly of single cylindrical cell cores (also known as “jelly roll”) of 18650, 21700 or 32650 cells.
MSK-112A-EA Semi-Automatic Cylindrical Winder Machine is a device that can be applied to the winding process of cylindrical lithium-ion battery pole pieces.
The Battery Winding Machine is a semi-automatic winding machine used for lithium Prismatic battery precision winding for the production line. and suitable for the different models of battery by changing the winding blade, The change work is a simple operation.
The battery winding machine is a semi-automatic electrode winding machine used for lithium Prismatic battery precision winding for the production line. and suitable for the different models of battery by changing the winding blade, The change work is a simple operation.
