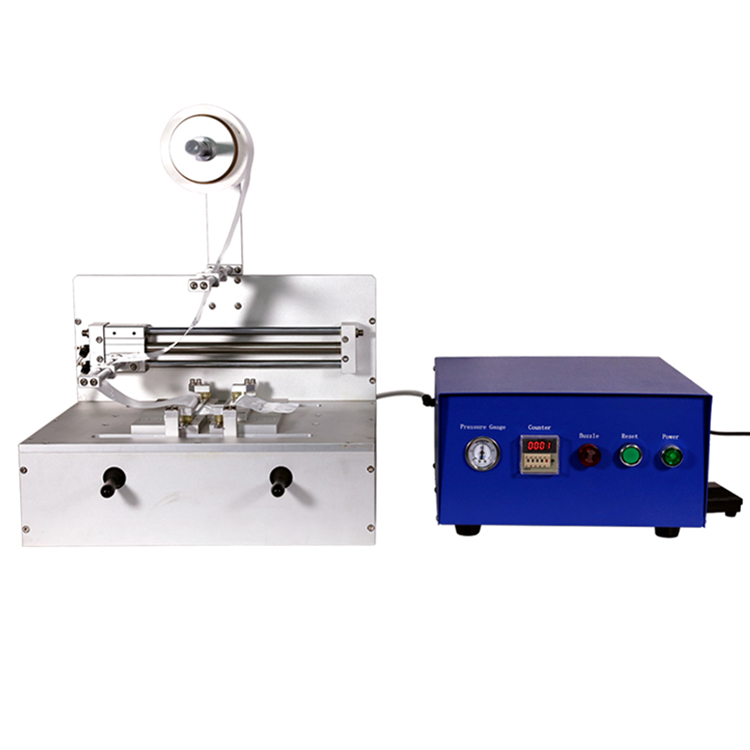

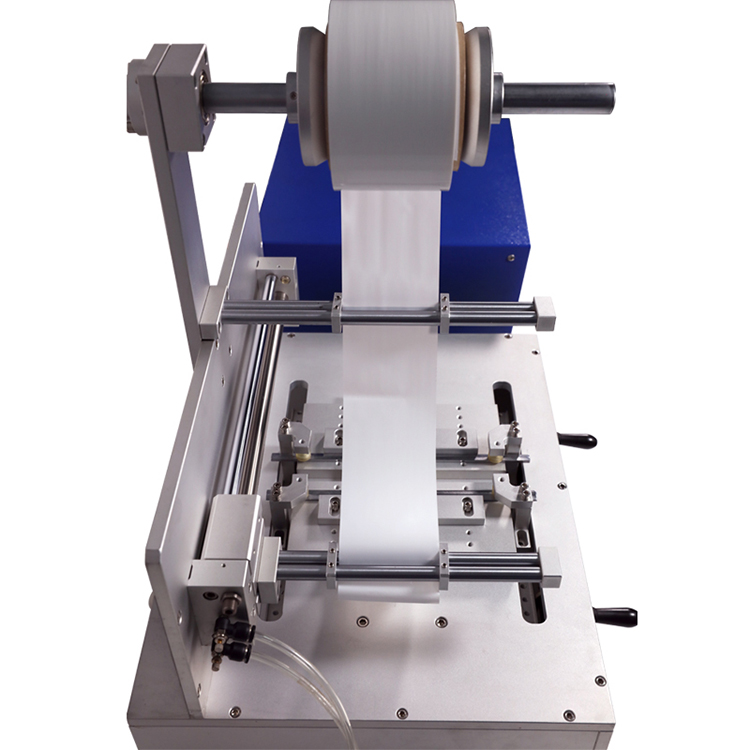

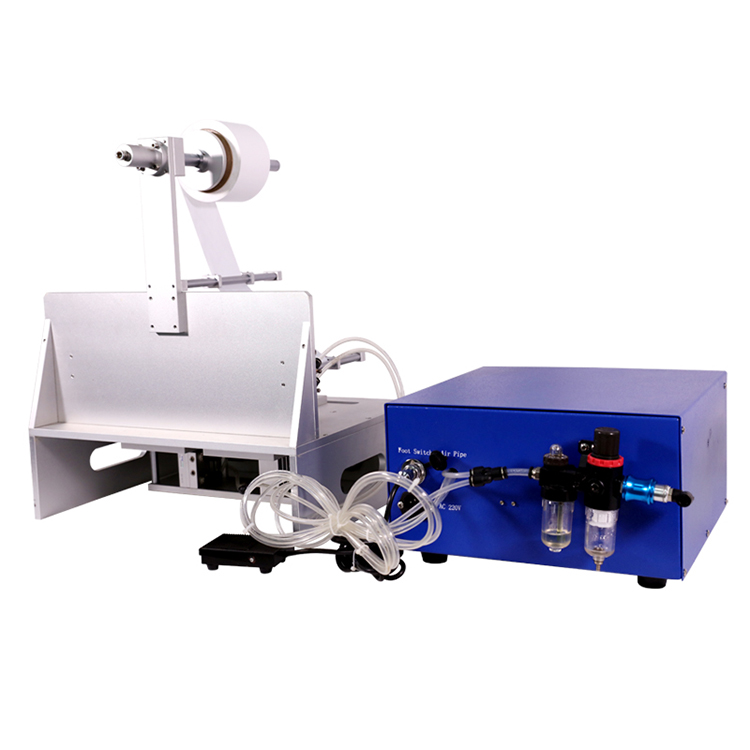

Lab Manual Lithium Battery Stacking Machine for Pouch Cell Cathode and Anode Stacking
This electrode stacking machine is suitable for the stacking process of pouch cells. Used for stacking battery cores that stack the anode/cathode and separator in a Z shape. Stacking machine and control box integration, save space, easy to set parameters, easy to operate
Features
1. The adjustment, operation and maintenance of the machine are simple and easy.
2. Applicable to a wide range of cell stack sizes/laminations.
3. High working efficiency, with digital display counter.
4. Adopt a foot switch to control cylinder movement.
5. The machine is small in size, exquisite and beautiful in appearance.
6. Desktop, can be placed on the normal table surface.
Specification
| Model No. | JT-MSM-200 |
| Lamination method | Z-shaped lamination |
| Diaphragm material roll | roll material diaphragm, 3-inch core, diameter φ200mm |
| Applicable pole piece specifications | length (20～200) mm, width (20～200) mm, thickness within 16mm |
| Swing roller travel stroke | 300mm |
| Power supply | AC220V/50Hz |
| Power | 200W |
| Air pressure source | 0.4MPa～0.7MPa |
| Equipment size | L650mmW400mmH700mm |
| Control box size | L200mmW300mmH380mm |
| Weight | 30Kg |

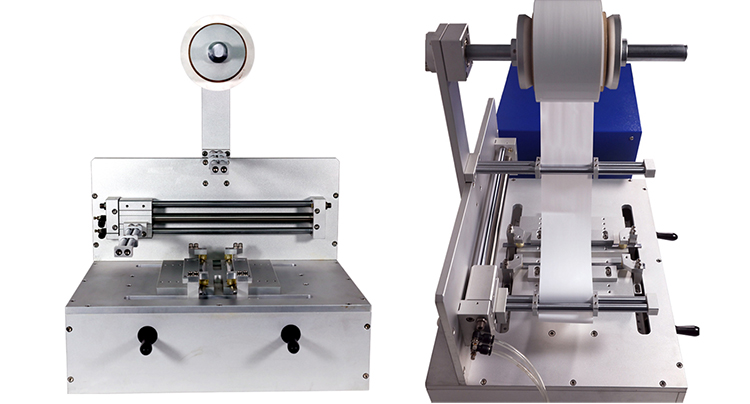

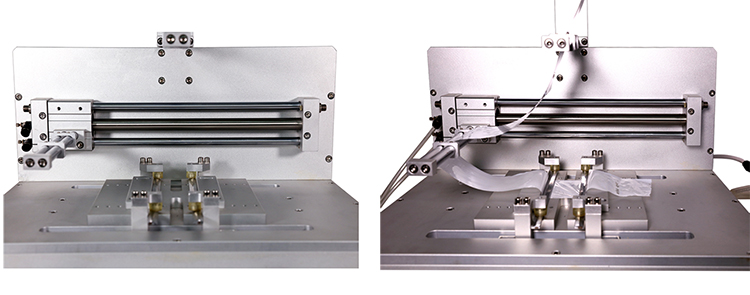

Product Image
Application
Battery lab, Battery research, Lithium-ion battery lab, Material Research, Trial-production.
