Pouch Cell Electrolyte Diffusion Degassing Chamber Vacuum Standing Box for Battery Lab Research

This electrolyte diffusion & degassing chamber is mainly used for absorbing the electrolyte and making it mix with electrode more completely under the condition of vacuum when injecting liquid into pouch cells and cylindrical batteries.
Unique periods of vacuum control system allow the electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.

The whole equipment is made of high-quality electronic components and materials. It is applicable for batteries of all sizes, with easy operation and efficient production. It is the perfect multifunction equipment for the lab.

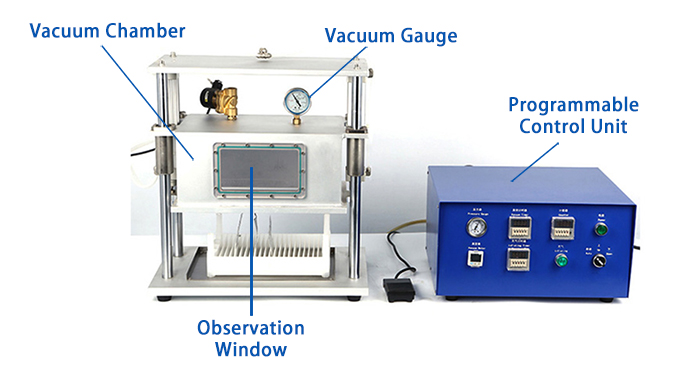

Pouch cell lab equipment (VACUUM STANDING BOX for Battery Electrolyte Diffusion)

Features
1. Applicable for batteries in all sizes and adjust simply and conveniently.
2. Split design of the main machine and control box makes the machine can work either in the glovebox or on the production line.

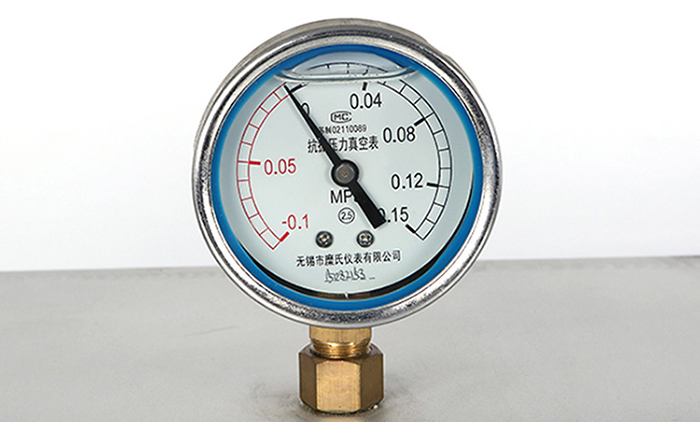

3. Vacuum keeps stable and vacuum degree does not descend too much.
4. Multi-stage circulate operation function makes the electrolyte fuses more complete.
5. Through the perspective window can observe the changes inside the chamber.
6. The upper chamber is driven by a cylinder and guided by two linear guide bushes to move up and down flexibly and guide accurately to ensure the product sealing demand.
7. Simple operation, nice appearance, small volume and lightweight.

Specification

Detail
