Laboratory Equipment Transparent Vacuum Acrylic Glove Box With Optional Vacuum Flange and Gauge

Laboratory Equipment Transparent Vacuum Acrylic Glove Box With Optional Vacuum Flange and Gauge

Made from acrylic plastic, these transparent glove boxes are basic systems designed for general inert atmosphere applications in laboratories. The transparent glove boxes can be further customized to meet the specific requirements of your research. Transparent glove box systems are highly easy to use, benchtop in design, lightweight in nature and compact.

It is mainly composed of the main box, transit room and side door. If the user has special requirements, it can also be customized and designed according to customer needs. There are 2 glove interfaces. In front of the main Vacuum Glove Box, the user can clearly view the box's inner situation. There are two vacuum ball valves and one vacuum gauge on the right of the main box. And there are also two vacuum ball valves and one vacuum gauge in the transit room. It can be used according to user needs. The ball valve can be connected with the water faucet when needing water or ventilation. The light bulbs can be also installed. Transit room means the transition between the main box and the outdoor, composed of two sealed doors, two vacuum ball valves and one room. Two doors isolate the main box from connecting with the outdoor, making material put in and taken out for lab easily.

Specification

Material: Plastic
Plastic Type: PVC

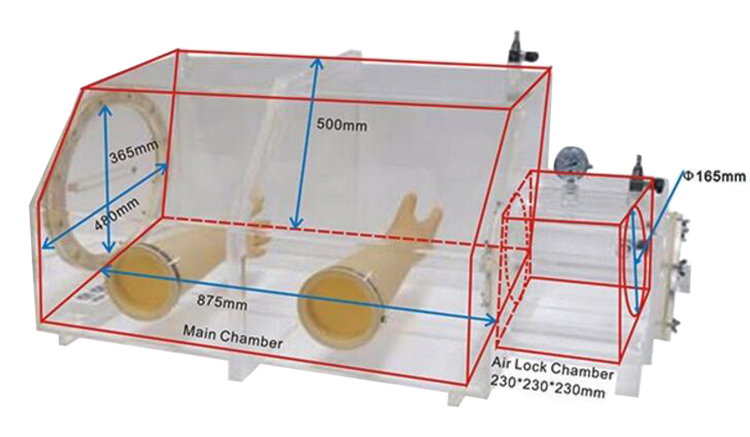

Air Locker Chamber Size: 230L x 230W x 230H mm
Containment Chamber Size: 875L x 480W x 500H mm
Product Overall Size: 1150L x 500W x 500H mm
Net: Weight 21kg
Pressure Controller: No
● Bench-top transparent glove box offers larger inert gas environmental workspace with vacuum air locker and side door.
● The Glove box is made of transparent polycarbonate for clear viewing from any angle.
● Polycarbonate construction affords resistance to a wide range of chemicals, high-impact strength and scratch-resistance and the smooth, hemispherical interior cleans easily.

Product Detail
