Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-BST8-3
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

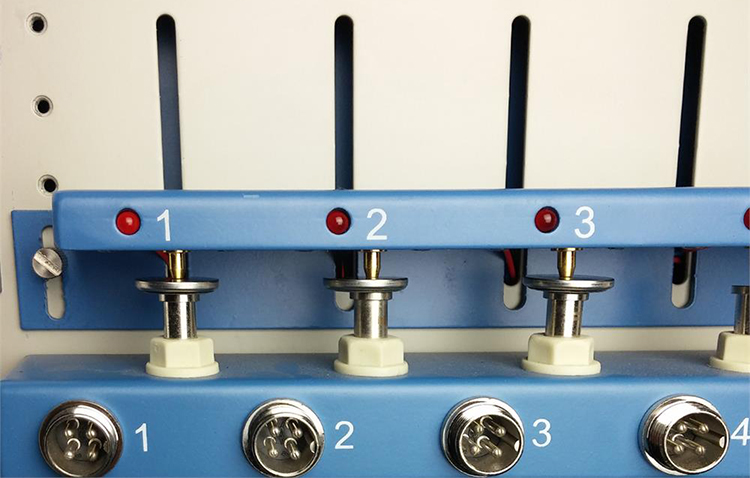

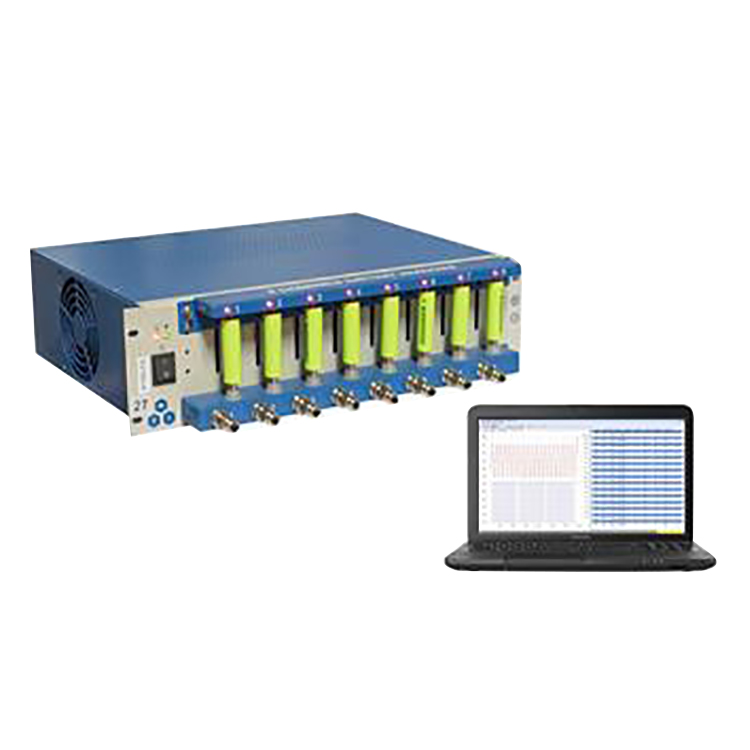

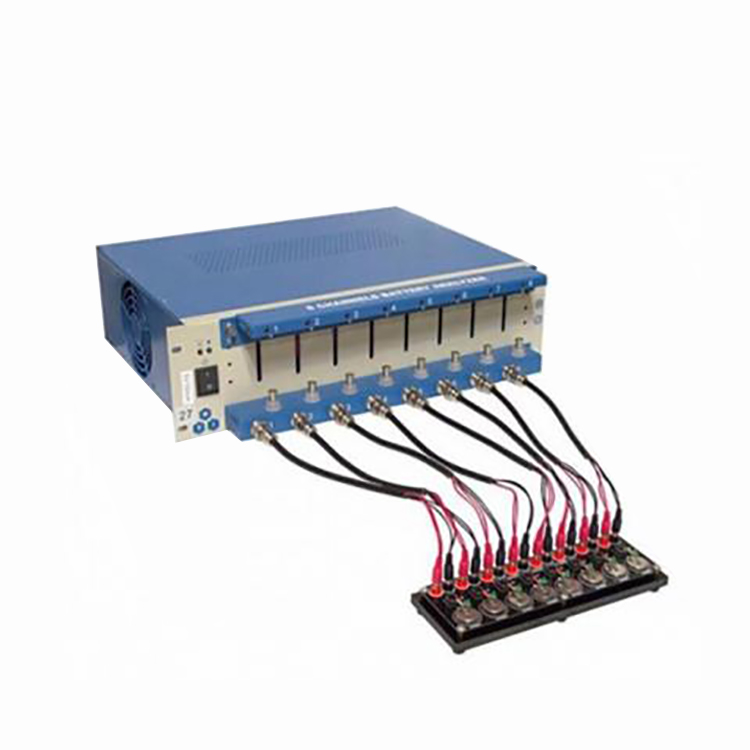

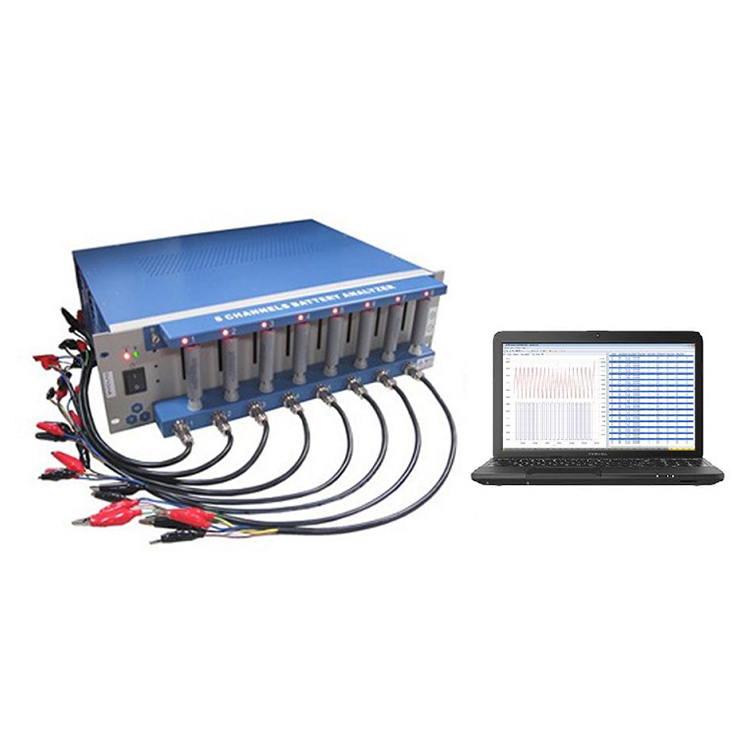

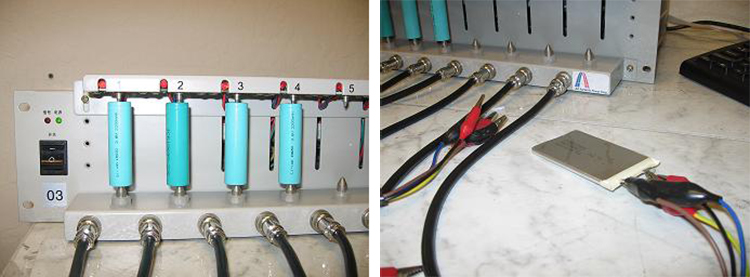

JT-BST8-3 is an 8 channel battery analyzer to analyze small coin cells and cylindrical batteries from 6.0 mA to 3000 mA, up to 5V, with gold-plated pins for the best connection. Each channel of the analyzer has an independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.
This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
Specification
| Electricity requirement | 110V AC or 220V AC selectable for universal use |
| Power Consumption | 200W |
| Current | Range: 6.0mA - 3000mA Accuracy: ±(0.05% of reading + 0.1% of range) |
| Voltage | Range: 0.5 - 5V programmable Accuracy: ±(0.05% of reading + 0.1% of range) |
| Data register conditions | Time interval: 1 - 900s |
| Max. measurement cycles | 9999 cycles |

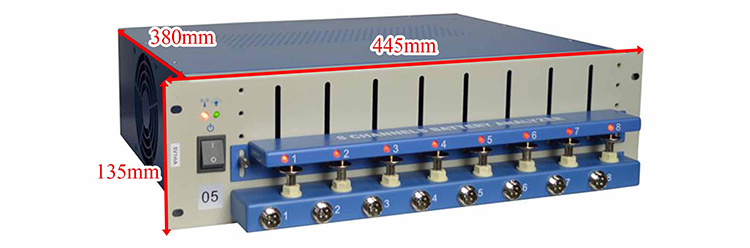

| Product Dimensions | 445mm(L) x 380mm(D) x 135mm(H) |
| Channels | Eight independent programmable channels Each channel can set different working modes and functions independently |
| Programs & Software | The software (TC5.3) with calibration function is included to set various working modes for measuring capacity and lifecycle for all types of rechargeable batteries Working modes Include constant current discharge, constant current charge, constant voltage charge, constant resistance discharge, rest, cycles, etc. Limited threshold conditions include voltage, current, time, capacity, negative voltage slope, etc. With real-time monitoring windows and integrated graph/data windows, the testing process can be observed more directly and efficiently During the test, the software will provide instructions and warnings for assistance The calibration software can be used to calibrate the analyzer |
| Compliance | SGS, CE Certified |
| Warranty | Two Year limited warranty with lifetime support for the battery analyzer. |
Product Detail
