Battery Electrolyte Diffusion Chamber Vacuum Standing Box For Lab
This battery electrolyte diffusion chamber vacuum standing box is specifically designed for professional Li-ion Battery Research.
Item No.: JT-MSK-150-L
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

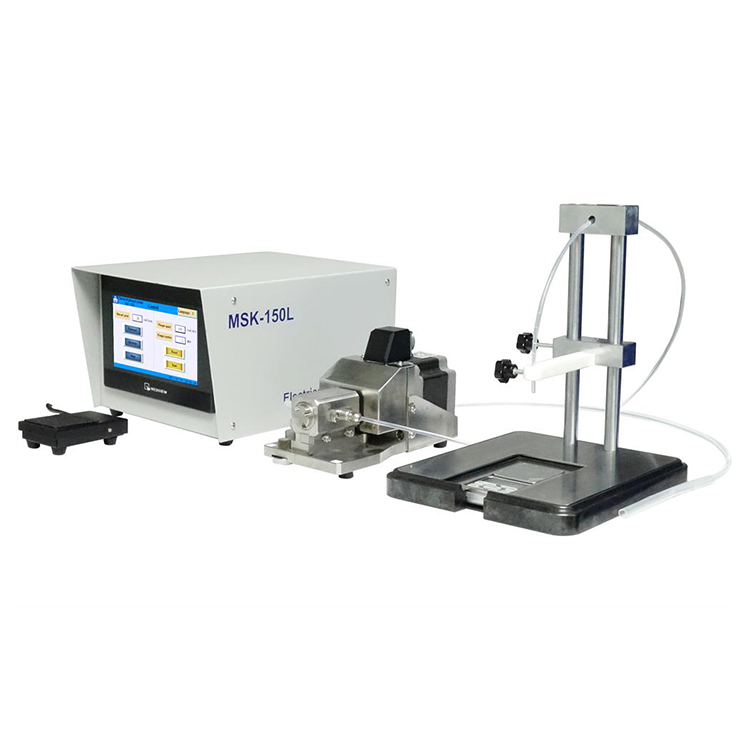

Desktop Precision Battery Electrolyte Filling Machine with Speed Control Console and Injection Pump
This MSK-150-L is a desktop electrolyte filling machine with speed control console and injection pump for high-precision dispensing purposes.
The control console allows customizing the dispensing speed by driving the internal stepper motor up to 250rpm.
The injection pump adjusts the volume of each dispensation.
This electrolyte filler is an ideal tool for preparing electrolytes in battery R&D.
Specification
| Voltage | DC24V |
| Power | 250W |
| Driving Mechanism | Stepper motor |
| Dispensing Speed | 250rpm max. |
| Injection Accuracy | 3‰ |
| Touchscreen Control | Forward and backward function to siphon electrolytes and release air bubbles. Customize dispensing speed and number of dispensations. |
| Inlet & Outlet Diameter | Inlet: Ø6mm Outlet: Ø4mm |
| Net Weight | Injection Pump: 4kg Control Console: 2kg |
| Product Dimensions | Injection Pump: 220 x 120 x 110mm Control Console: 360 x 240 x 190mm |
Product Image
