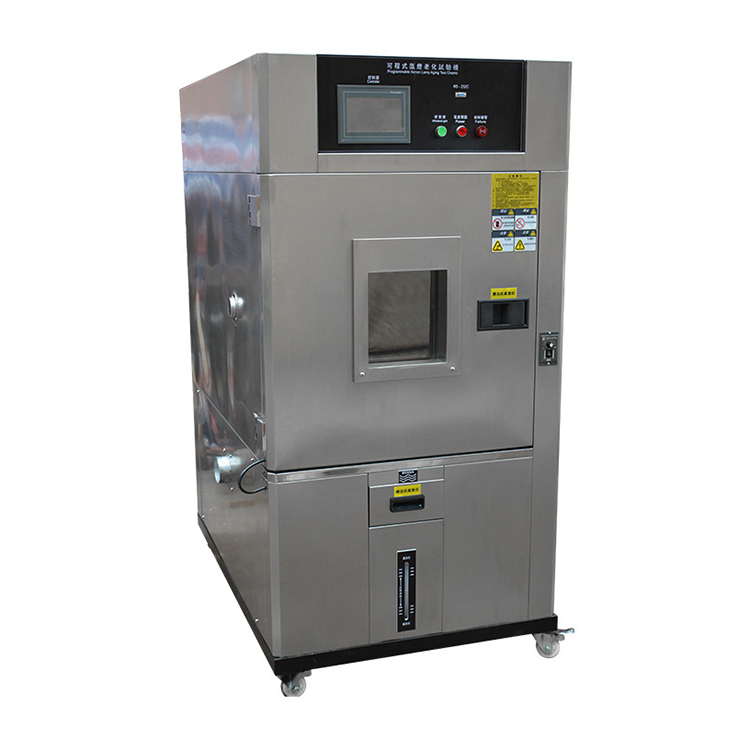

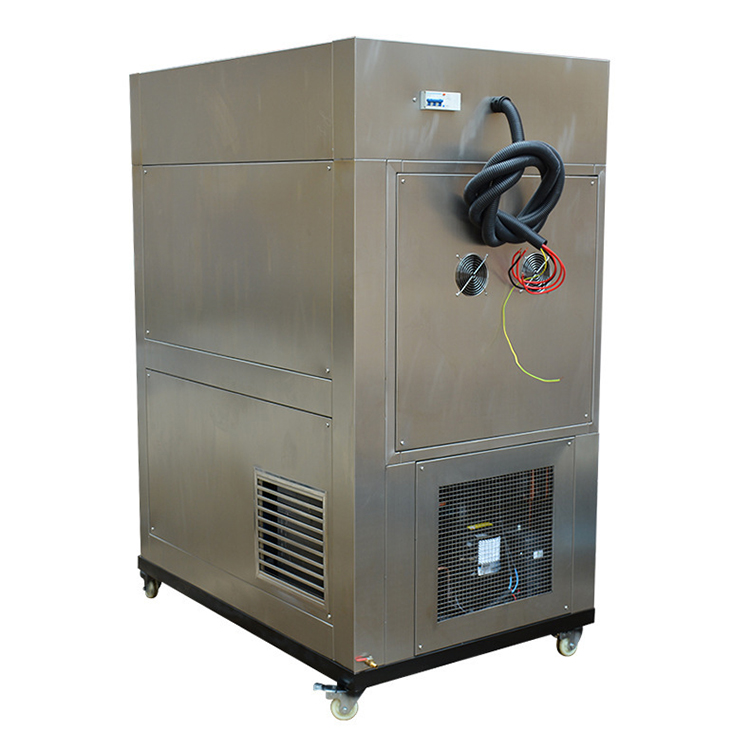

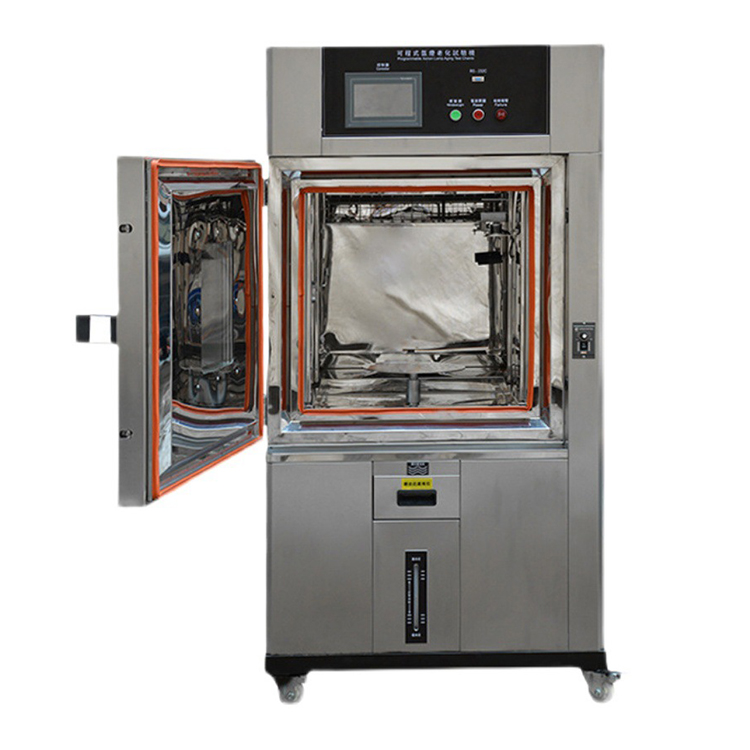

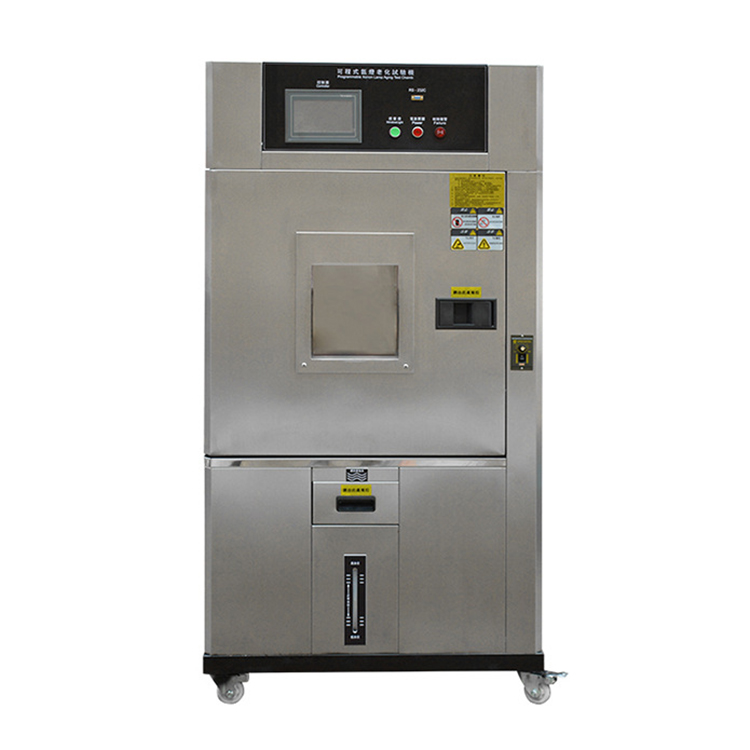

High-Temperature Aging Equipment Xenon Lamp Aging Testing Chamber Climatic Test Chamber
The Xenon Lamp Aging Testing Chamber is mainly used in ultracapacitor, battery production or experimental aging test at high temperatures.
The xenon arc lamp can simulate the whole sunlight spectrum, can be used to reproduce destructive light waves in different environments. It can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control.
S-type xenon arc lamp test chamber can be used for the selection of new materials, the change of existing materials or the change of durability test after the change of material composition. It can well simulate the change of materials exposed to sunlight under different environmental conditions.
Specification
| Temperature range | 10℃～80℃ |
| Humidity range | 65%～98%R.H |
| Blackboard temperature | 63℃、100℃（accuracy: ±3℃） |
| Temperature fluctuation | ≤±1.5℃ |
| Uniform temperature | ≤±2.0℃ |
| Humidity fluctuation | +2%～-3% R.H |
| Window filter | Borosilicate glass |
| Xenon light source | Imported air-cooled xenon arc light source |
| Xenon lamp power | 1.8KW |
| Lamp Quantity | 1 |
| Rainfall time | 1～9999min, continuous rainfall adjustable |
| Rainfall cycle | 1-240 minutes, intermittent rainfall adjustable |
| Nozzle bore | Ф0.8mm(with ultra fine filter to prevent nozzle clogging) |
| Rain water pressure | 0.12～0.15kpa |
| Spray cycle | 18min/102min or 12min/48min(spray time / no spray time) |
| Spray pressure | 0.12～0.15Mpa |
| heating power | 2.0KW |
| Humidification power | 2KW |
| Light period | Continuous adjustable time 0-999 hours |
| Spectral wavelength | The irradiance range of 295nm-800nm is 100w-800W /㎡ adjustable. |
| Rotary speed | Adjustable rotation speed of the stage (stepless speed regulation) |
Product Detail
