500°C 30Ton Manual Hydraulic Benchtop Heated Lab Press With Double Heating Plate
The benchtop 30Ton manual hydraulic heated lab press is designed for the heated pressing of polymer, ceramic powder, and electrode/membrane films.
Item No.: JT-SP16
Brand: Jingtong
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

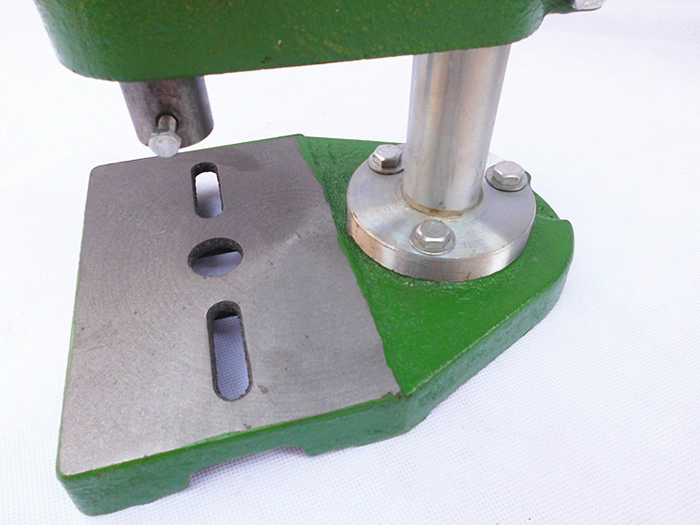

0.5T / 16 Punch Type Manual Punch Hand Presses Machine for Supercapacitor Tabs
This manual punching machine is mainly used for pressing rubber plugs and aluminum plugs after the supercapacitor is filled with liquid.
Features
1. Small volume, convenient operation, the use of flexible and fast, can be in Φabove 200 mm diameter glove box excessive freedom through the warehouse.
2. The appearance is exquisite, beautiful and concise, and the cleaning and maintenance are simple with the advantages of compact size.
3. Easy to use, wide range of applications.
Specification
- Name: 0.5T / 16 type manual punch
- Impulse stroke: 35mm
- Available work maximum height: 230mm
- Mold handle hole diameter: 11.5-12mm
- Worktable available size: 130 * 195mm
- Hole size on both sides of workbench: 14 * 48mm
- The spacing of the holes on both sides of the workbench is: 65mm
- The table on both sides of the hole the maximum space is: 155mm
- The total height of the machine is: 410mm
- The total height of the column solid is: 370mm
- The surface distance of the punch to the column is: 98mm
- The diameter of the center hole of the motherboard table is: 25mm
- Column diameter: 38mm
- Handle length: 270mm
- Packing size: 45 * 27 * 15 cm
- Weight: 14.5 kg
Product Detail
