Cylindrical Cell Battery Assembly Equipment Line for 18650/21700/26650 Preparation
Jingtong Battery Equipments offers the most professional cylindrical cell assembly equipment for 18650/21700/26650 battery laboratory research and assembly.
Item No.: JT-BT-5V12A-2
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This Eight-Channel Battery Tester is a three-range output current tester, 5mA-1A, 1A-6A, 6A-12A. The accuracy for current and voltage on these channels is ±0.05% FS. The flexibility of the 5V12A analyzer allows it to be used for a wide range of applications such as materials research, quality control in manufacturing, research & development, battery and cell testing, Super-capacitor testing, etc.
Each channel of the analyzer has an independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.
This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.
Specification
| Product Name | Battery Testing Equipment 5V12A | |
| Model No. | JT-BT-5V12A | |
| Input power | AC 220V ±10% / 50Hz | |
| Input active power | 826W | |
| Input Resistance | ≥1MΩ | |
| Resolution | AD: 16bit; DA: 16bit | |
| Voltage | Per Channel Voltage Range | 25mV~5V |
| Discharge Min Voltage | 2V | |
| Accuracy | ±0.05% of FS | |
| Stability | ±0.05% of FS | |
| Current | Per Channel Current Range | Range one：0.5mA~1A； Range two：1A~6A； Range three：6mA~12mA |
| Accuracy | ±0.05% of FS | |
| Constant Voltage Cut-off Current | 0.2mA；6mA；12mA | |
| Stability | ±0.05% of FS | |
| Power | Per Channel Output Power | 60W |
| Stability | ±0.1% of FS | |
| Time | Current Response Time | (0~Full Range)＜1ms |
| Step Time Range | ≤（365*24）Hour/Step | |
| Data Recording | Recording Condition | The minimum time interval：100ms The minimum voltage interval：10mV The minimum current interval：2mA；12mA；24mA |
| Record Frequency | 10Hz | |
| Charge | Charge Mode | Constant Current Charge、Constant Voltage Charge、Constant Current and Constant Voltage Charge、CPC |
| End Condition | Voltage、Current、Relative Time、Capacity、-△V | |
| Discharge | Discharge Mode | CCD、CVD、CCVD、CPD、CRD |
| End Condition | Voltage、Current、Relative Time、Capacity | |
| Pulse | Charge | CCC |
| Discharge | CCD | |
| Min Pulse Width | 500ms | |
| Pulse Number | Each pulse step supports 32 different pulses | |
| Automated Switch | Automated switch from charge to discharge for each pulse | |
| End Condition | Voltage, Test Time | |
| Cycle | Loop Measure Range | 1~65535 times |
| Max Steps Per Loop | 254 | |
| Nested Loop | Nested loop Function, Max Support 3 Layers | |
| Protection | Software Protection | Power-down Data Protection |
| Off-line Testing Function | ||
| Setting Protection Condition, Setting Parameter: Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time | ||
| Noise | <85dB | |
| Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure | |
| Channel Control Mode | Independent Control | |
| Voltage and Current Testing Sample | 4-wire connecting | |
| Database | MySQL Database | |
| A Means of Communication of Upper Machine | TCP/IP Protocol | |
| Data Output | EXCEL、TXT、Graph | |
| Communication Interface | Ethernet Port | |
| Per Unit Main Channels No. | 8 | |
| Working Temperature Range | 0℃~40℃ | |
| Storage Temperature Range | -10℃~50℃ | |
| Working Environment Relative Humidity Range | 30% ~ 80% RH | |
| Storage Environment Relative Humidity Range | 30% ~ 90% RH | |
| Dimensions | 3U2F, W*D*H: 480*400*130（mm） | |

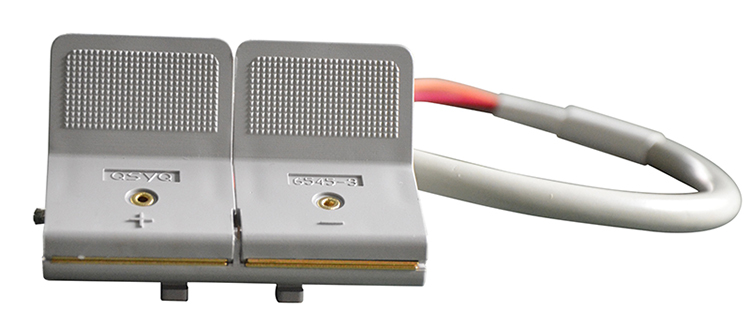

Product Image
