Item No.: JT-DC06C
Compliance: CE Certified
Order (MOQ): 1
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This coin cell disc cutter machine is a compact disc cutter with quality sliding rail for battery separator precision cutting. It can be easily placed into a glove box via a transition chamber which a diameter larger than 230mm.
The button cell punching machine is manually operated and is designed for cutting round discs from a thin metal sheet /foil (< 0.5 mm) or separator film (<30um). The finished discs can be used as electrode and separator discs for split test cells and coin cells, it is good for battery researchers as well as TEM sample preparation.
Specification
Machine model | Disc cutter for coin cell battery separator punching JT-DC06C |
Operating | Manual/Hand press |
Punching size | Standard configuration: 15mm diameter die for electrode punching and19mm diameter die for separator cutting. (φ6-24mm customized) |
Application Notes | To make CR2016, CR2025, and CR2032 coin cell batteries, we will need at least three cutting dies: A 15mm (for negative side case, which is 16.5mm in diameter) B 19mm (for positive side case, which is 20mm in diameter) C 20 mm (for the separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die for either electrode or separator disc. |
Punching stroke | 25mm |
Punching thickness | 0.005-0.5mm electrode and separator |
Advantages | Easy operation Compact size and lightweight Can both cut electrode and separator by changing the cutting die |
Dimension | 110*150*235mm |
Weight | About 7kg |
Warranty | One Year |

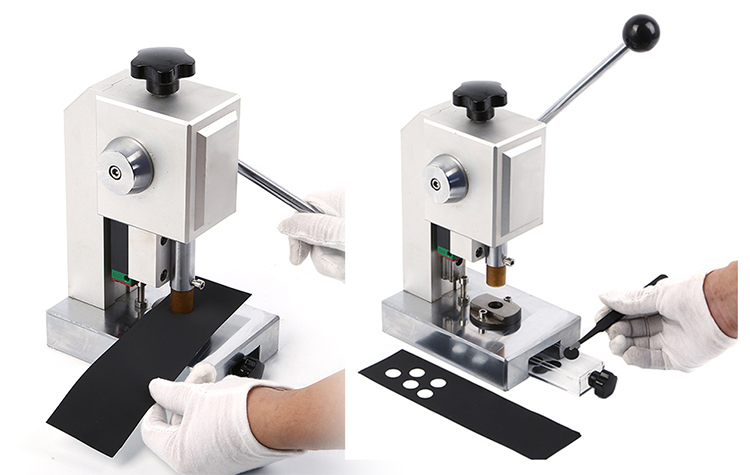

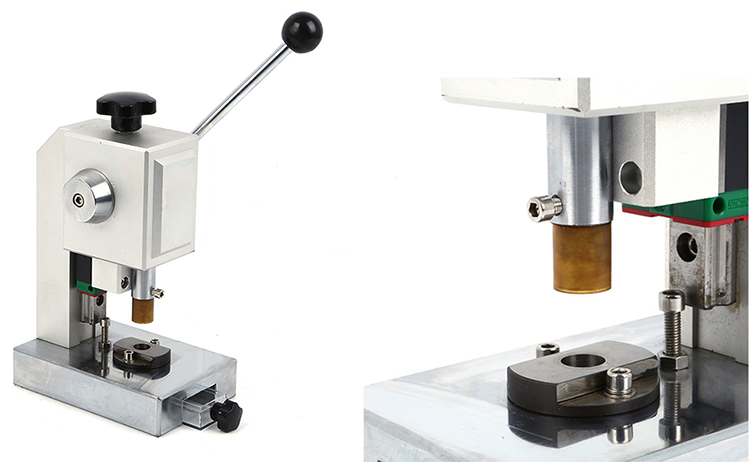

Product Image
