Item No.: JT-HDC100-2
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This hydraulic die-cutting machine is suitable for die-cutting and forming of battery positive and negative plates, as well as for die-cutting of lithium plates, and can be used in a glove box.
Features
1. Small size, easy to operate, and can be placed in a glove box for operation.
2. Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper-pressure limit can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.

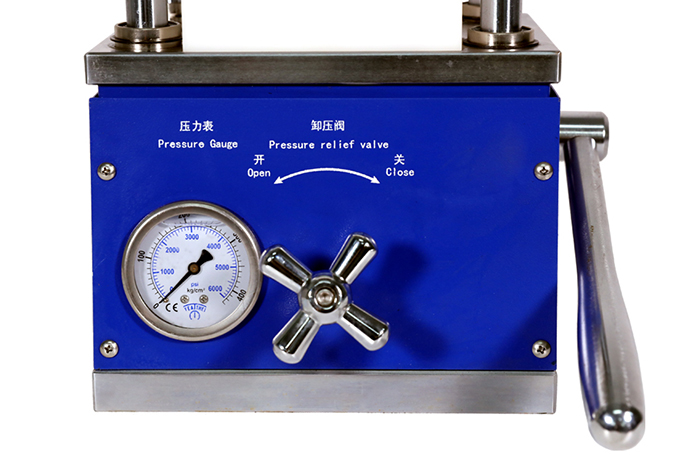

3. Built-in pressure gauge can observe and accurately control the size of the sealing pressure.
4. Using hydraulic drive, the pressure can reach 8T, die cutting without vibration, and no leakage.
5. It is convenient and quick to change the knife mold.
6. Long tool life, normal use ≥ 30,000 times.
7. There are no quality defects such as burrs, powder falling, and indentation.

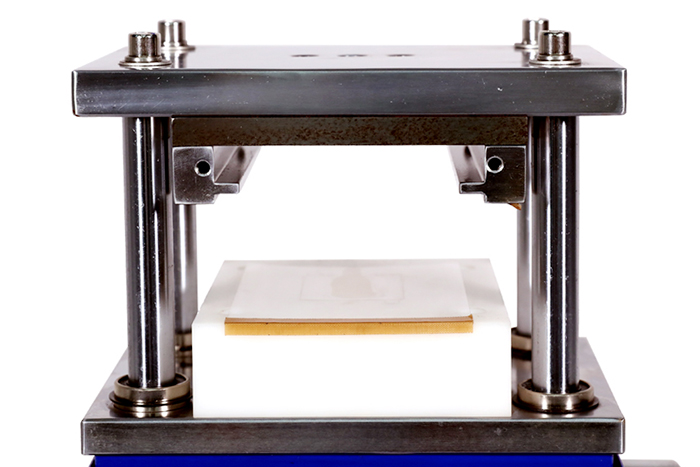

8. Using four guide pillar structure, sliding up and down smoothly and with high precision.
9. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc.
Instructions
Put the electrode sheet into the die-cutting position, and then hold the oil unloading valve handwheel, tighten it in a clockwise direction, and rotate it to the limited position. Pry the hand rocker up and down continuously, when the jack rises and pressurizes, the movable template drives the die-cutting knife group to automatically cut the electrode sheet into shape. Hold the oil unloading valve hand wheel and unscrew the electrode sheet by half a turn counterclockwise. The mold will automatically open and take out the electrode sheet to complete.
Specification
Model No. | JT-HDC100 |
| Punching size | 120x100mm (can be customized according to customer requirements) |
| Punching accuracy | ±0.1 mm |
| Pressure | 8T |
| Die cutting stroke | 35mm |
| Structural material | high-strength chromium steel, the surface will never rust after environmental protection plating and spraying. |
| Dimensions | 223mm X 170mm X 325mm |
| Weight | 25kg |
Detail Pictures
