Pouch Cell Assembly Machine Polymer Battery Lab Research Line
Jingtong Battery Equipments offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.
Item No.: JT-VGB-6D
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days

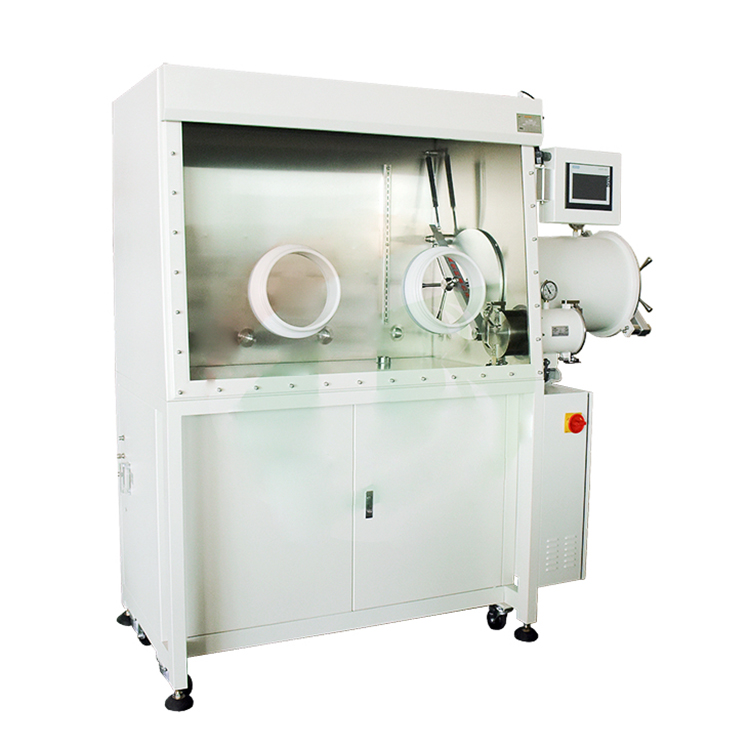

Lab vacuum glove Box with air circulation and vacuum system, gas purification system to control water and oxygen index less than 1ppm.
Single station, single operation, integrated with a single column purification unit, PLC touch screen operation control, vacuum pump, bracket, a closed box, with operating surface tilt and detachable safety glass front window. Under normal conditions, namely the 20℃ constant temperature, a standard atmosphere, inert gas 99.999%, water and oxygen index less than 1 ppm.
Basic configuration
* 1 set 304 stainless steel box, acid-resisting, thickness : 3mm
* 1 stainless steel Vacuum transitional chamber, φ360*600mm
* 1 small stainless steel transitional chamber, φ150*300mm.
* 1 window with 2 glove mouth.
* 1 pair of butyl rubber gloves.
* 1 set of lighting systems.
* 1 the power interface.
* 3 KF40 backup interface.
* 1 set of high-performance circulating fan 90m3/h, installation of frequency.
* 1 vacuum pump.
* 1 set of water analyzer
* 1 set of oxygen analyzers.
* 1 set of the organic solvent adsorber.
* 1 bracket and trundle.
* 1-foot pedal.
Key components
Parts | Origin |
Vacuum Pump | EDWARDS (UK) |
CirculatingFan | DARGANG（TAIWANG,CHINA） |
Water Analyzer | Germany OEM |
Oxygen Analyzer | Germany OEM |
pressure Sensor | HALSTRUP-WALCHER（Germany） |
Purification Materials | BASF、BAYER（Germany） |
ButylRubberGloves | PIERCAN（USA） |
ElectromagneticValve | BURKET（Germany） |
PipeFittings | LEGRIS（France） |
PLC & Touch Screen | SIEMENS（Germany） |
Pressure Gauge | WIKA（Germany） |
Integrated Valve Base | Customized |
Technology Parameters
Item | Parameter | ||
Glove box | Box | Box size: (L*W*H)=1220 X 750 X 900mm Box material: stainless steel 304, thickness 3mm Inner surface: stainless steel wire drawing treatment Outside surface: paint, white | |
Front window | Tilt windows, transparent tempered safety glass, thickness 8 mm | ||
Glove ports | The material is polyoxymethylene, O-ring seal, self-lubricating performance, easy to maintain, and good sealing performance | ||
Gloves | Butyl rubber, diameter 8", length 32" | ||
Filter: | 0.3 microns, a gas inlet and a gas outlet | ||
Shelf | Stainless steel, 2 layers | ||
Lighting | LED lights, installed in front of each glass window | ||
Connector | Standby interface 3pcs, DN 40 KF, Power interface 1pc (220V) | ||
Bigger transitive cabin | Chamber | Size: diameter 360mm, length 600mm Material: 304 stainless steel Surface: inner surface wire drawing process, outer surface painting (white) | |
Accessories | Sliding tray: 304 stainless steel Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism Pressure gauge: Analog display | ||
Control | Solenoid valve touch screen automatic operation | ||
Smaller transitive cabin | Chamber | Size: diameter 150mm, length 300mm (100mm length into the glove box) Material: 304 stainless steel Surface: inner: wire drawing process, outer: painting (white) | |
Accessories | Standard configuration: small cabin tray Door: double door, thread lock Pressure gauge: Analog display | ||
Control | Manual valve manual operation | ||
Gas purification circulation system | Purification column | Function: gas sealed, remove water, remove oxygen Container material: 304 stainless steel Purification materials: copper catalyst: 5kg, molecular sieve: 5 kg Purification capacity: oxygen: 60L, water: 2Kg Water and oxygen indicators: less than 1ppm | |
Circulatory system | Working gas: nitrogen, argon Recycling capacity: integrated fan flow 90m³ / h, install frequency conversion | ||
Regeneration | Operation: PLC automatically controls the regeneration process Regeneration gas: working gas mixed with hydrogen gas, (hydrogen 5-10%) | ||
Vacuum pump | 8m³/ h, rotary vane pump, with oil mist filter, air vibration control | ||
Valves | Main valve: DN 40 KF, electrically operated angle valve Control valve: electromagnetic integrated valve (stainless steel integrated valve base, single column for the six valve integration) | ||
Control System | Function | Including self-diagnosis, power-off self-starting characteristics, with pressure control and adaptive function Automatic control, cycle control, password protection | |

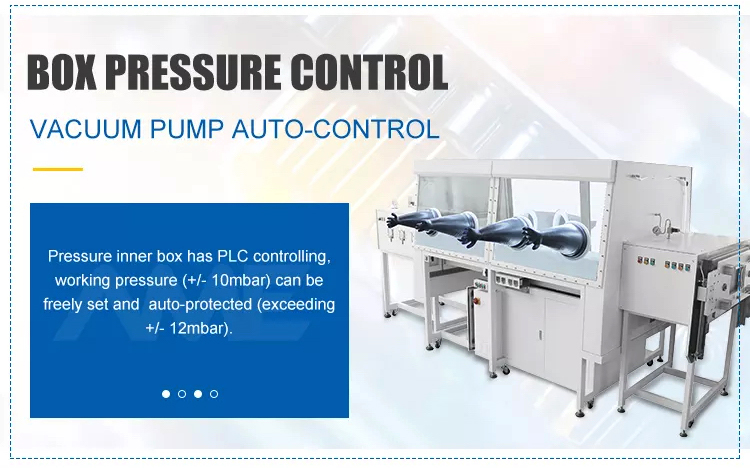

Pressure control | Control box, transition chamber pressure, cabinet working pressure +/- 10mbar can be set freely, beyond +/- 12mbar system automatic protection | ||
Pedal | Control the box pressure, easy to operate boost and buck | ||
Display system | Using Siemens PLC touch screen, display running status, box pressure, system records, etc | ||
Vacuum system control | Vacuum pump, can be manually or through the PLC to start, flow 8m³/h, the vacuum of the transition chamber, and keep the box pressure balance, vacuum pump limit vacuum ≤2x10-1pa | ||
Optional components | Water analyzer | Measuring range: 0 ~ 500ppm A wide range of applications, especially for lithium manufacturing and metal-organic and other users, the water probe can be cleaned by the regeneration process to restore the initial state, can be reused | |
Oxygen analyzer | Measuring range: 0 ~ 1000ppm The use of ZrO2 sensor, to avoid the fuel cell life is short, and avoid the problem of it can not be exposed in the air | ||
Organic solvent adsorption | Size: diameter 136mm, height 256mm, filled with 2kg activated carbon, placed inside the box, can quickly replace the material, and does not destroy the high purity atmosphere | ||

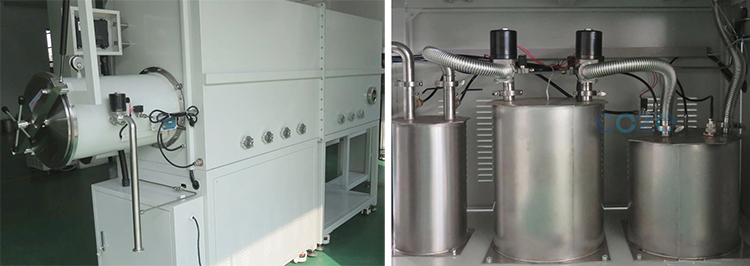

Product Detail
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
Jingtong Battery Equipments offers the most professional pouch cell and supercapacitor assembly line equipment for battery research and manufacturing.
Jingtong Battery Equipments offers the full set of pouch cell battery producing equipment from mixing to last testing equipment, Including the ball mill, vacuum mixer, electrode coating machine, rolling press machine, electrode die cutter, battery stacking machine, ultrasonic spot welder, pouch forming machine, top&side heat sealer, electrolyte diffusion chamber and filler, secondary vacuum heat sealer, edge cutting machine, edge folding machine, edge hotting machine and battery tester.
Jingtong Battery Equipments provides a full set of cylindrical battery-producing machines/equipment from mixing to the last testing process.
Jingtong Battery Equipments provides a full set of cylindrical cell battery-producing equipment from mixing to last testing equipment, including the tub furnace, ball mill, vacuum mixer, electrode coating machine, electrode rolling press machine.
Jingtong Battery Equipments provides a full set of coin cell battery-producing machines/equipment from mixing to the last testing process.
Jingtong Battery Equipments provides metal and chemical materials that are used to make coin cells, if you want more details about the materials, please contact us without hesitation.
The cold isostatic pressing (CIP) machine is used for laboratory powder pressing. It is with a 30mm ID hydraulic chamber made of ultra-strength stainless steel, which can provide isostatic pressure up to 300 Mpa.
The benchtop 30Ton manual hydraulic heated lab press is designed for the heated pressing of polymer, ceramic powder, and electrode/membrane films.
The dry pellet pressing die cylindrical mold is a common tablet-pressing mold in the laboratory powder sample pressure molding, which is suitable for the molding and testing of most powder samples in the laboratory.
Compared with manual hydraulic press, this bench-top automatic lab press machine offered by Jingtong Industry can set and automatically hold the designated pressure for up to 999m59s. The upper and lower pressure values can be programmed and automatically controlled by the press itself.
The benchtop 24T manual hydraulic heated lab press is designed for the heated pressing of polymer, ceramic powder and electrode/membrane films.
This wet and dry lab roller ball mill is a kind of roller jar mill equipment used for ultra-fine grinding and mixing for laboratory and small batch production.
The PVC/POF Heat Shrinking Machine is very suitable for automatic unmanned packaging of products with an automatic packaging line, and suitable for single item packaging or packaging of items with bottom support.
Coin cell lab equipment line mainly includes the vacuum mixer, manual film coating machine, electrode roller press machine, electrode cutter and crimping machine for coin cell sealing.
The heating electric vertical roller press machine is mainly suitable for the electric rolling of battery materials in the laboratory
