Item No.: JT-EQ-BC-8C
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Specifications
1. 8 cables with optional connectors are included in the standard package for immediate use

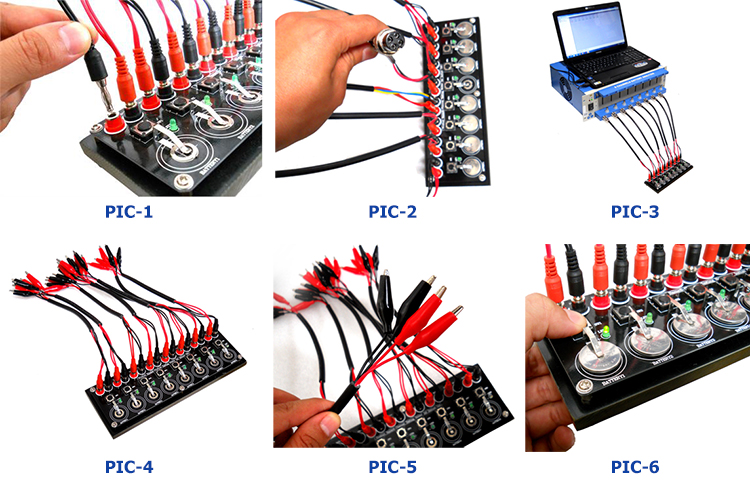

I. The connectors to the board are the banana plug for easy insertion and removal,(AS Shown in pic-1). The Banana Plug of the cable is 4mm banana plug, Max wire diam.4.2 mm
I. Another end or of connector testing system are optional connectors
i. 4-pin bayonet connectors compatible with Jingtong's battery analyzers only (Pic. 2 & 3)
i. 4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing systems (Pic. 4 & 5)
2. Built-in battery polarity check light will be on when right place the coin cell and press down the check button
3. Can test coin cell with diam. up to 25mm and compatible with most of the popular coin cell sizes, like CR2016, CR2032, CR2325, and CR2450
4. 8 channels work independently
5. Easy battery insertion and removal
6. Holder Material: Polypropylene
7. Dimension: 230 mm L x 80 mm W x 32 mm H
Operation Manual
Introduction
This 8 channels button cell testing clip is suitable for holding button cells with diameter up to 25mm. Build-in Polarity Check function, easy battery insertion and removal.

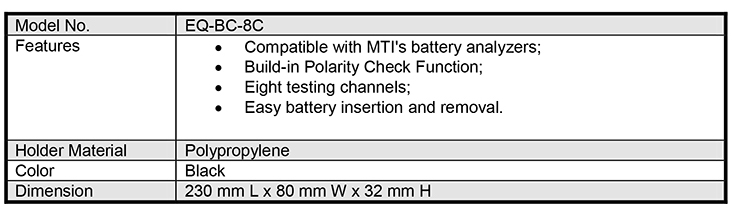

Specification

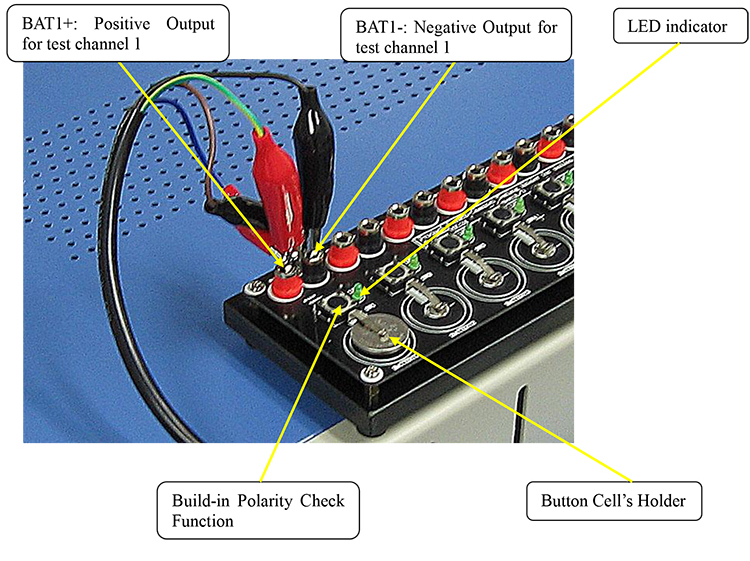

Structure
Operation
1. Button Cell Insertion: Positive side faces up, negative side faces down.
2. Build-in Polarity Check function: Press the “SW” button, LED indicator
lighting represents the proper installation of button cell, vise versa.
