Item No.: JT-MSK-FT01
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
This JT-MSK-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >100 micrometers. An SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.
Specifications
Power Requirements
- Input: 100 - 240V AC; 50/60 Hz
- Output: DC12V, 0.4A
- Power plug configured for US electrical sockets (CE Certified) is included; plugs for other countries is available.
| Structure | Made of SS304 |
| Pump Flow Rate | 3L/min |
| Absolute Vacuum Level | 65kPa |
| Capacity | 750mL |
| Filtration | 1 Filter included Filtration Pore Sizes: 100 mesh |

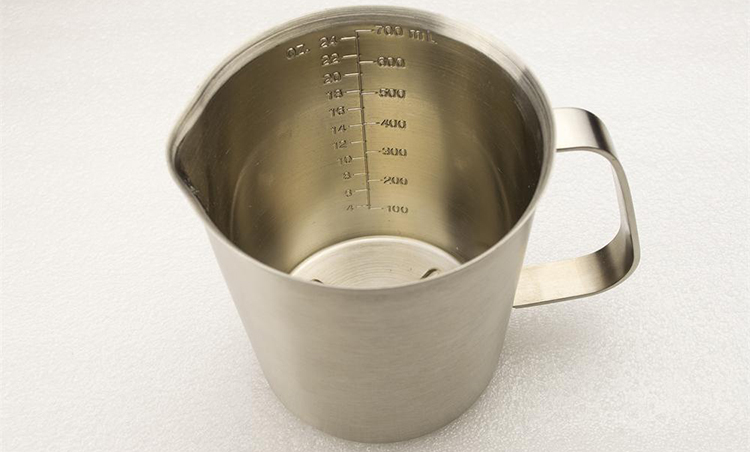

| Measuring Cup | One stainless steel cup is included for measuring slurry up to 700ml or 24oz Scribe lines on the inside facilitate the measurement |
| Filter Container Dimensions | 140mm x 70mm x150mm |

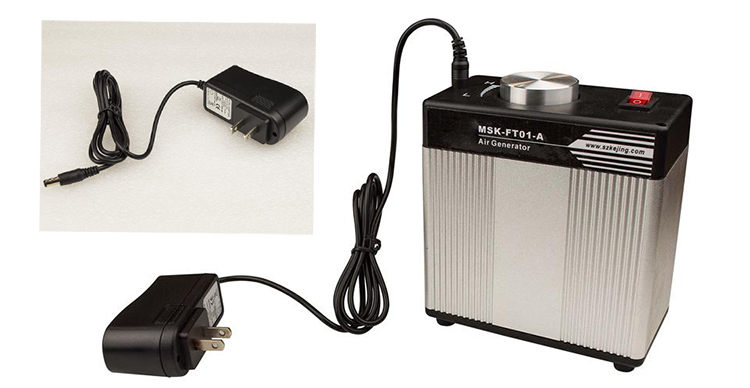

| Air Generator Dimensions | 150mm x 150mm x 200mm |
| Net Weight | 4kg |
| Warranty | One year limited with lifetime support Parts rusted without regular cleaning and maintenance are not covered by the warranty |
Filtration
Measuring Cup
