Item No.: JT-FC-100B
Compliance: CE Certified
Order (MOQ): 1 Set
Payment Terms: T/T, L/C, Western Union, Paypal
Product Origin: China
Warranty: One Year warranty with lifetime support
Lead Time: 7 Days
Battery cell lab equipment ( VACUUM COATER MACHINE ) :
This lab vacuum film coater machine is widely used for the research of all kinds of film coating,
like ceramic films, crystal films, battery material films, and special nano-films.
Features
1. Coating speed is at the range of 0~100mm, adjustable.
2. Vacuum aluminum plate, used to place and take off the substrate quickly.
3. Stroke can be regulated by travel switch at the range of 0~300mm.
4. Accuracy of adjustable coating machine is 0.01mm.
5. Small dimension saves space.
Specification
Item Name | Battery Coin Cell Vacuum Coating Machine JT-FC-100B |
Voltage | AC 110/220V, 50/60HZ |
Power | 200w |
Coating Speed | 0~100mm/s |
Vacuum Plate | The machine is equipped with vacuum aluminum plate |
Max Stroke | 300mm (customized size is available) |
Film Width | 100mm |
Dimension of the vacuum plate | L410mm X W200mm X H30mm |
Regulating range of applicator | 0.01~3.5mm |
Weight | 50KG |
Dimension | L550mm X W310mm X H3200mm |

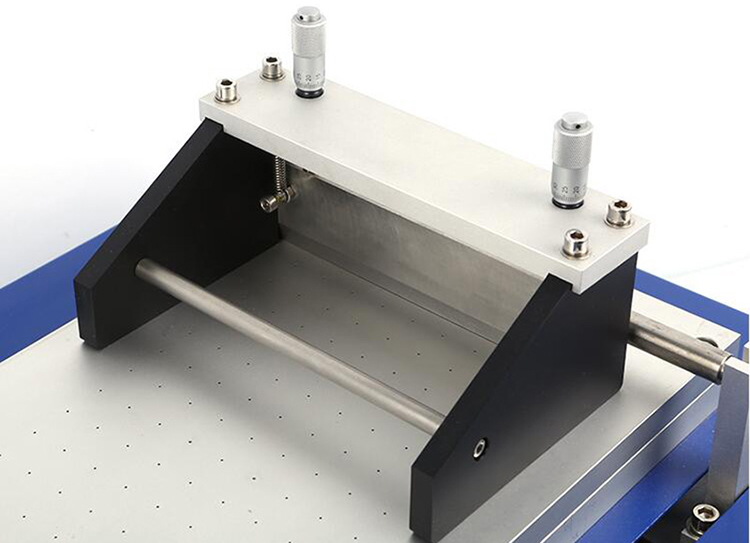

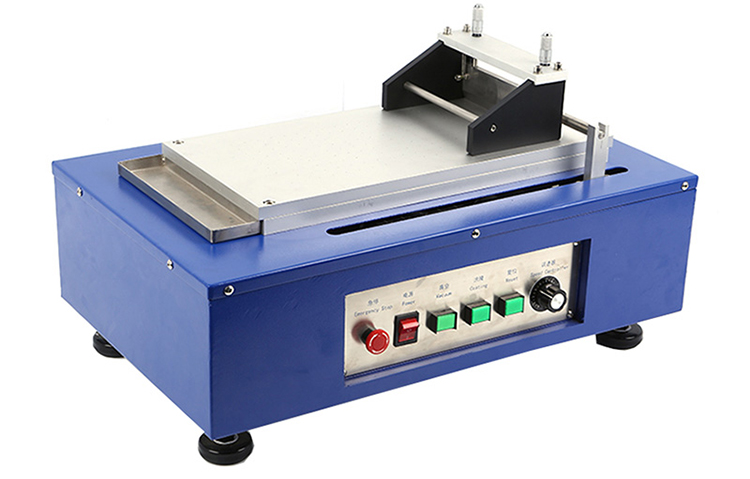

Product Image
__________________________________
Email: [email protected]
Tel/WhatsApp: +86 18598065580
Skype: [email protected]
Wechat: +86 18598065580
The JT-MSK-PN120 is a compact gas-driven aluminum laminated films pouch case forming machine for pouch cell fabrication laboratory, which fits the electrodes cut by MSK-180S electrode cutting machine.
The Battery heat sealing machine is a compact heating sealer for sealing aluminum-laminated films during pouch cell (polymer Li-Ion cell) case preparation.
Jingtong Industry can provide custom pouch cell case-forming services according to your requirement.We also provide customer services according to your requirements to design the new pouch die, but you need to pay for the die sinking cost.
Aluminum laminated film is one of the five major materials of lithium-ion batteries, and it is pouch lithium battery packaging material.
The PVC/POF Heat Shrinking Machine is very suitable for automatic unmanned packaging of products with an automatic packaging line, and suitable for single item packaging or packaging of items with bottom support.
This battery edge cutting machine is mainly used for lithium polymer battery aluminum laminated film trimming molding, and it can also be used for cutting off other soft materials.
Aluminum Laminated Film for Polymer Battery Case Thickness 122um
Aluminum Laminated Film for Pouch Cell Case is used as casing material for polymer Li-Ion batteries.
152um Aluminum Laminated Film for Power Polymer Lithium Ion Battery Pouch Cell Case

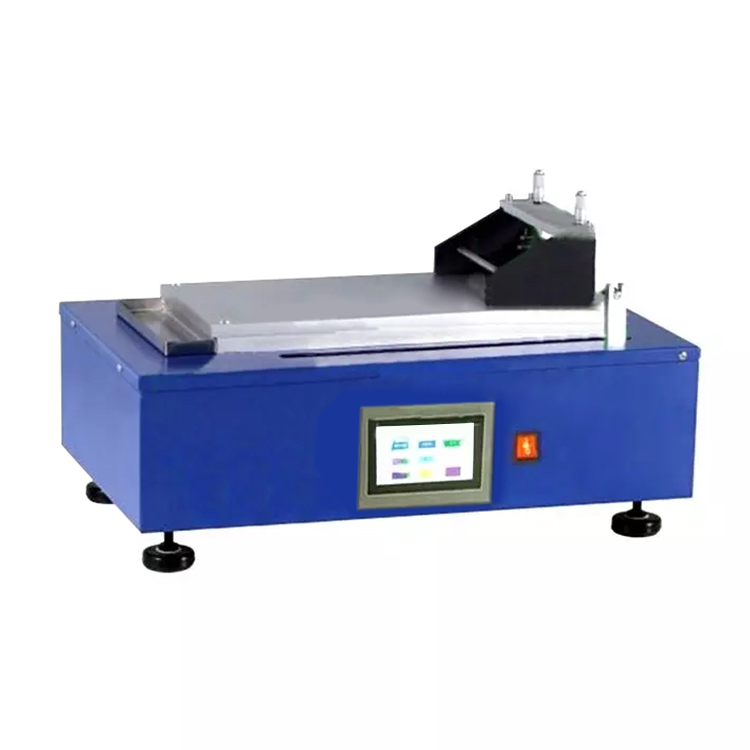

The vacuum electrode film coating machine is equipped with a precise adjustable film device, and the moving push rod pushes it to move at a constant speed to achieve the uniformity of the slurry coating on the substrate.
